Chinese Scientists Redefine the Limits of 3D Printing: A Breakthrough Aluminum Alloy Withstands 865 MPa at Room Temperature and 400°C

Source: AM Letters

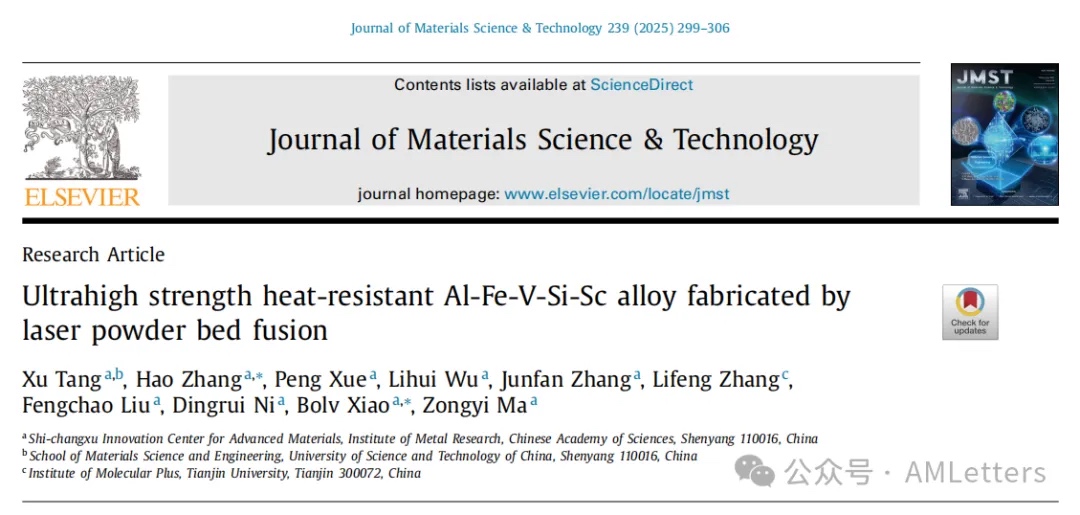

Chinese researchers have shattered the performance ceiling of 3D-printed aluminum alloys, unveiling an ultrahigh-strength, heat-resistant new material. A team from the Institute of Metal Research, Chinese Academy of Sciences, recently published a landmark study in Materials Science and Technology, announcing the successful fabrication of a novel Al-Fe-V-Si-Sc aluminum alloy using laser powder bed fusion (LPBF)—a cutting-edge metal 3D printing technique. The alloy achieves a remarkable tensile strength of 865 MPa at room temperature and retains exceptional mechanical integrity at 400°C. This breakthrough fills the long-standing technological void in the 200–450°C range and offers a transformative solution for lightweight aerospace and automotive applications.

Technical Breakthrough: Synergy of Microalloying and Laser Printing

The research team pioneered the addition of trace scandium (Sc) to the Al-Fe-V-Si alloy and leveraged the rapid solidification characteristics of LPBF (cooling rates up to 10⁷ K/s) to suppress thermal cracking, a common defect in high-strength aluminum printing. By fine-tuning parameters such as laser power and scan speed, the team achieved a densification rate of 99.9%, overcoming a major hurdle in the additive manufacturing of strong aluminum alloys.

Microstructural analysis revealed a unique amorphous–crystalline composite architecture: the molten pool center rapidly solidified into an amorphous banded network, while the periphery featured nanometer-scale precipitates such as Al₈Fe₂Si and Al₁₀V.

The incorporation of Sc also induced the formation of Al₃Sc interface phases, which inhibited nanoparticle coarsening under elevated temperatures, endowing the alloy with both exceptional strength and thermal stability.

Outstanding Performance Across Temperatures

Mechanical tests showed that the alloy boasts a tensile strength of 865 MPa and a hardness of 360 HV at room temperature—approximately 30% higher than existing 3D-printed aluminum alloys. Even at 400°C, the alloy maintains a tensile strength of 450 MPa, outperforming not only conventional aluminum alloys but also certain titanium alloys. This multiscale precipitation-strengthened design ushers in a new paradigm for developing high-performance materials via additive manufacturing.

Application Prospects: Integrated Manufacturing of Complex Components

The study also demonstrated the alloy’s potential in fabricating intricate lattice structures. LPBF technology enables seamless integration of material, structure, and performance, positioning this alloy as a promising candidate for heat-resistant engine components and lightweight spacecraft brackets. This integration significantly reduces machining costs and enhances design flexibility.

Efforts are now underway to scale up the production process and assess the alloy’s long-term thermal stability. This innovation not only pushes the boundaries of aluminum alloys under extreme conditions but also enriches China’s strategic reserves of independently developed materials for advanced manufacturing.

Key Figures

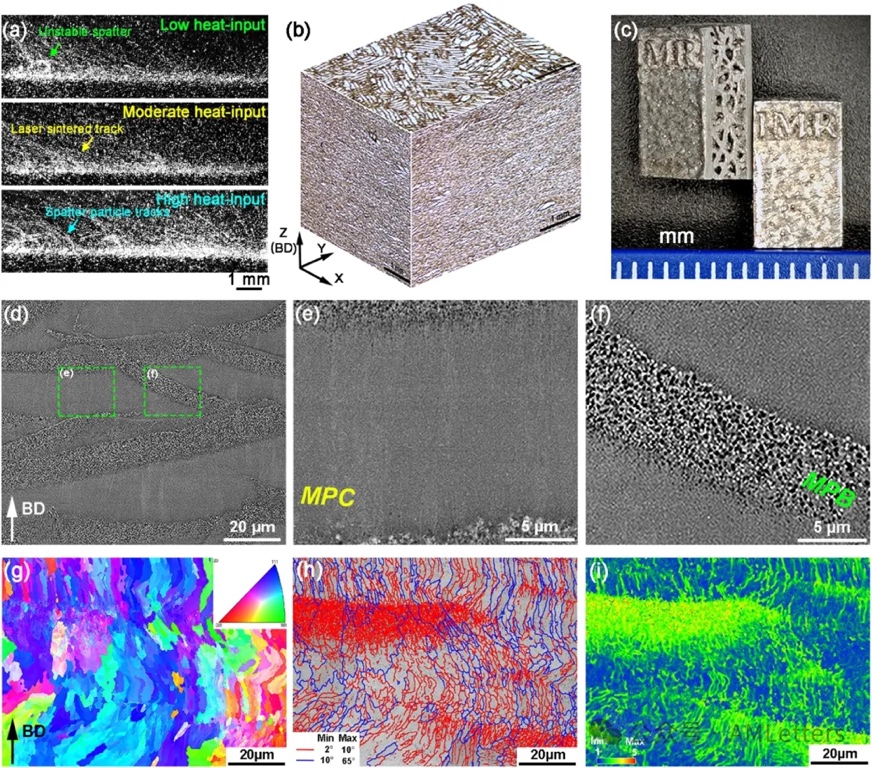

 Figure 1: (a) High-speed camera imaging of melt pool formation under varying heat inputs; (b) 3D metallographic rendering of optimized samples; (c) Macroscopic view of complex lattice structure; (d–f) SEM close-ups of build direction, melt pool center, and boundaries; (g–i) IPF orientation map, grain boundary map, and KAM strain distribution.

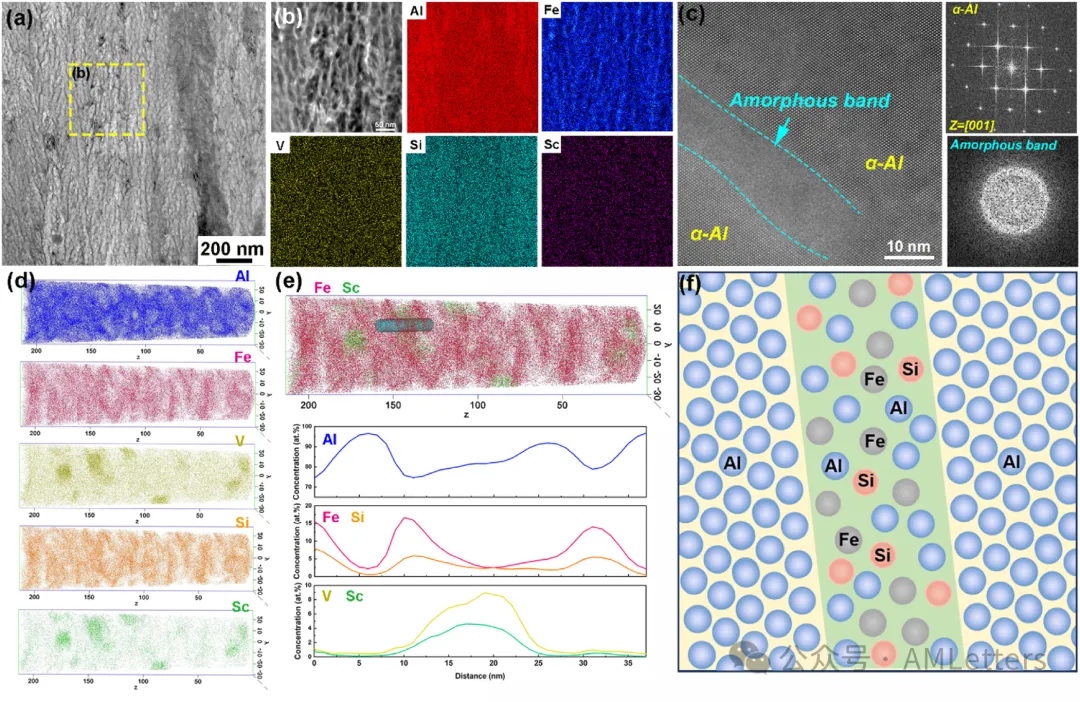

 Figure 2: (a) TEM image of the melt pool center showing banded amorphous networks; (b) EDS elemental mapping of composite structures; (c) High-resolution TEM and FFT diffraction patterns; (d–f) Atom probe tomography and 1D element concentration profile; schematic of amorphous phase formation.

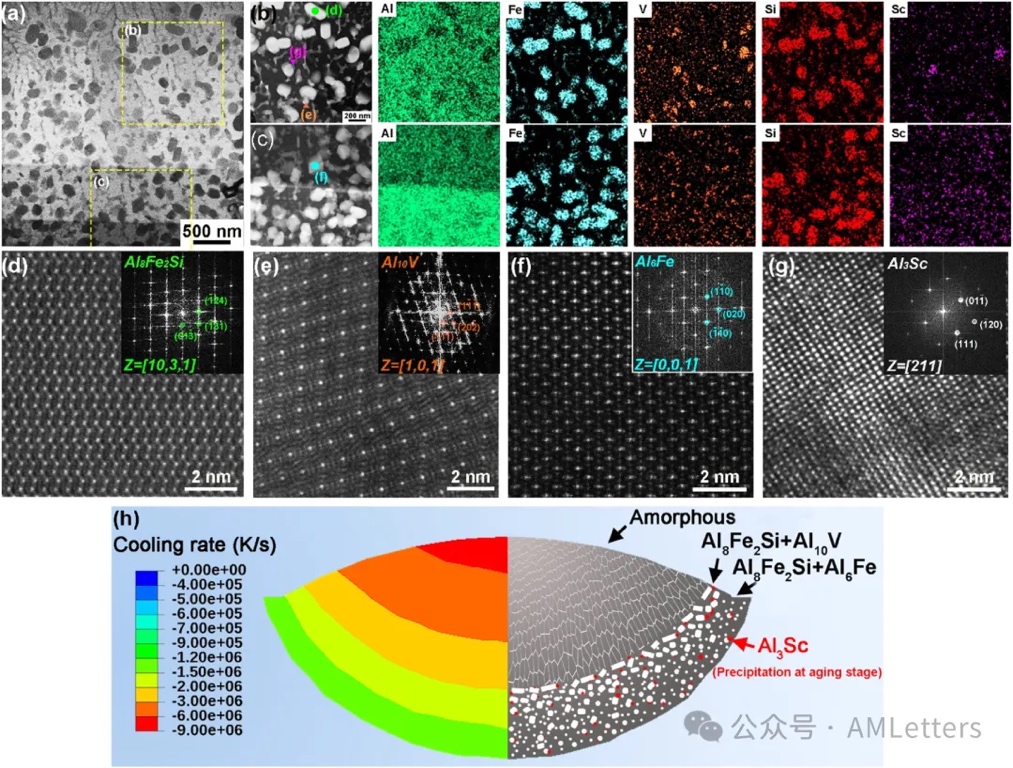

 Figure 3: (a) TEM of melt pool boundary with precipitate distribution; (b–c) HADDF and element mapping; (d–g) HRTEM and FFT analysis of Al₈Fe₂Si, Al₁₀V, Al₆Fe, and Al₃Sc phases; (h) Cooling rate simulation and phase distribution illustration.

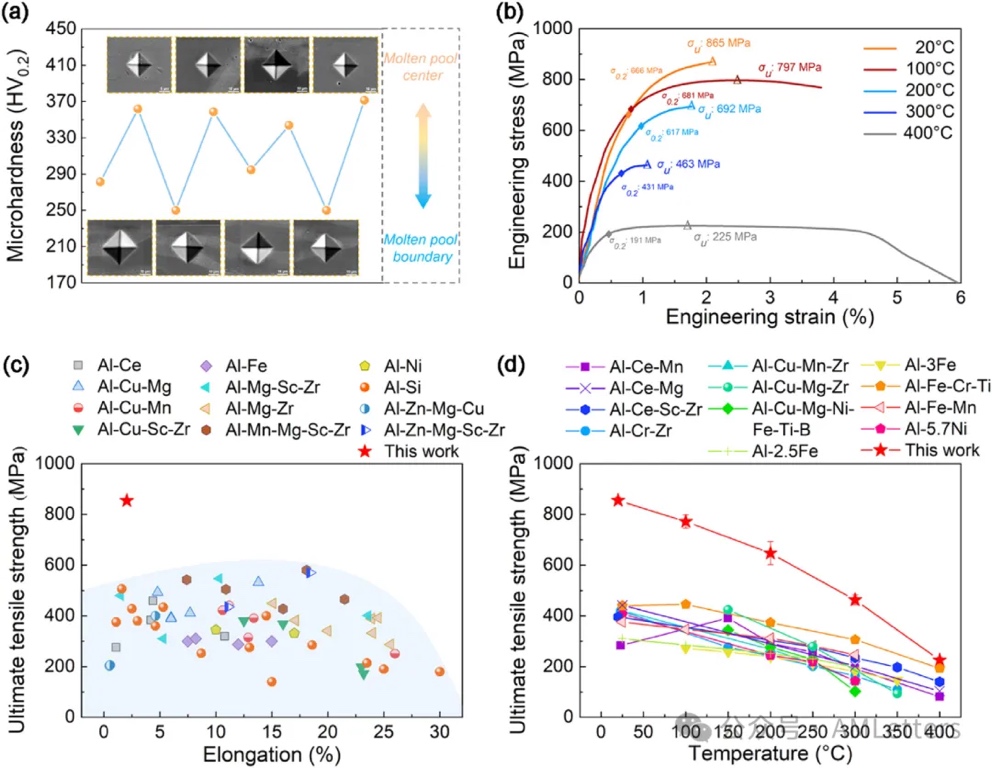

 Figure 4: (a) Hardness mapping across melt pool; (b) Engineering stress–strain curves at different temperatures; (c–d) Room and high-temperature tensile strength comparisons.

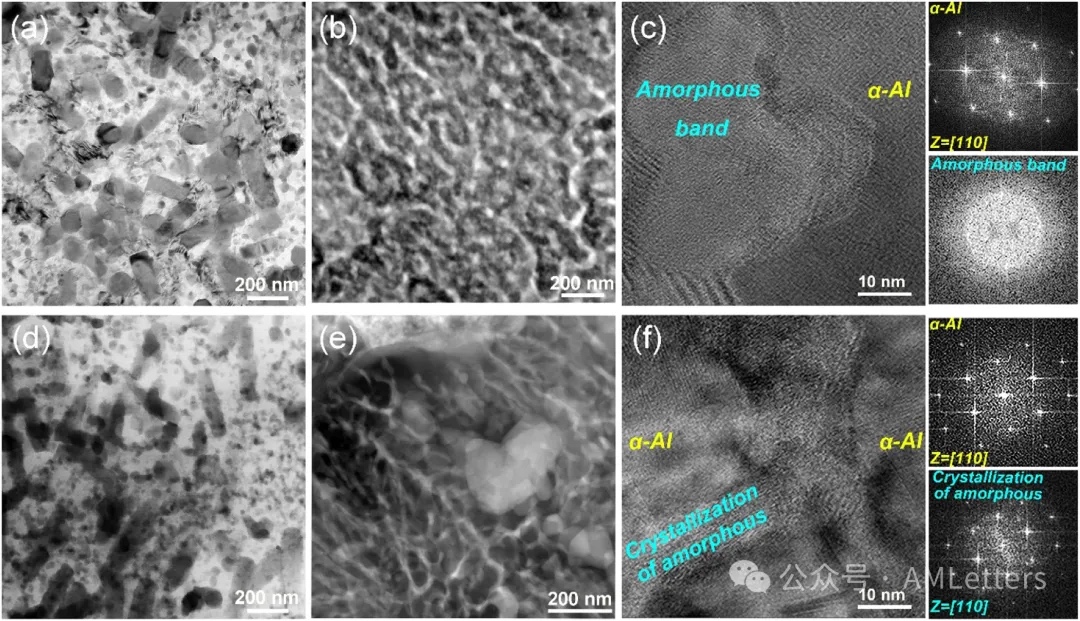

 Figure 5: (a, d) Nanoprecipitates at 300/400°C post-tensile testing at melt pool boundaries; (b, e) Amorphous network in pool centers; (c, f) High-resolution TEM and FFT of amorphous phases.

AM Letters Commentary

1. Three Core Technological Breakthroughs

 Amorphous–Crystalline Composite Structure: LPBF’s ultra-rapid cooling (10⁷ K/s) forms an amorphous network at the melt pool center, enhancing strength by hindering dislocation motion.

 Multiscale Precipitation Strengthening: Nanoprecipitates like Al₈Fe₂Si and Al₁₀V (10–100 nm) fortify the matrix via the Orowan mechanism, while Al₃Sc interface phases prevent high-temperature coarsening.

 Grain Boundary Engineering via Scandium: Sc refines grains and pins boundaries, significantly reducing hot cracking susceptibility.

Insight: The non-equilibrium nature of 3D printing becomes a tool for unlocking material performance—not merely a defect to be mitigated.

2. Engineering Challenges Ahead

Despite promising lab results, industrial-scale deployment must overcome:

 Cost Barriers: Scandium is prohibitively expensive (\~15,000 RMB/kg), necessitating cheaper alternatives or efficient recycling strategies.

 Process Stability: Lab-level parameters (e.g., 275 W laser power, 1600 mm/s scan speed) are sensitive to powder flow and equipment variability, risking lower densification in mass production.

 Thermal Durability: While short-term performance at 400°C is excellent, applications like jet engines require >5000 hours of high-temperature stability—currently unverified.

Reflection: Like superalloys and carbon fibers, transitioning from lab to production often hinges on overcoming the “last-mile” technological gap.

3. Disruptive Potential and Industry Impact

 Design Freedom: LPBF allows spatial control of amorphous and nanoprecipitate distribution, enabling functionally graded designs—e.g., reinforcing stress zones while reducing weight elsewhere.

 Titanium Alloy Replacement: Replacing aerospace-grade titanium with this alloy could cut component weight by 20–30%, saving over a million USD per aircraft annually in fuel costs alone.

 Strategic Significance for China: Historically reliant on imported high-end materials, China is now leveraging rapid advancements in additive manufacturing to leapfrog in key sectors. This breakthrough exemplifies a domestically developed material poised to serve critical roles in aerospace, nuclear energy, and beyond.
