UPRISE 3D升华三维

author:Lyncy | date:2024-8-1 16:17 | show all
UPRISE 3D logo.png

SHENZHEN UPRISE 3D TECHNOLOGY CO.,LTD was established in June 2017.  We are a young and passionate Chinese technology company.  We focus on the development and innovation of metal/ceramic indirect 3D printing technology and provide the best service and excellent 3D printing solutions worldwide.
  • 升华三维1.png
Powder Extrusion Printing(PEP)
Powder Extrusion printing(PEP) technology is a metal/ceramic particle material 3D printing process combined with “3D printing + powder metallurgy” at UPRISE 3D.   Mouldless manufacturing of metal/ceramic products is realized by means of molten extrusion of granular materials.   After obtaining green part with a certain density and strength, the products with consistent and excellent performance are ultimately obtained by debinding and sintering process.
PEP Technology Superiority
  • The process system is mature and stable
  • Excellent product consistency
  • PIM metal/ceramic materials are available
  • Simple molding method
  • No laser printing low cost
  • High performance product manufacturing
  • Composite material development
  • Green and environmental protection
  • 升华三维3.png

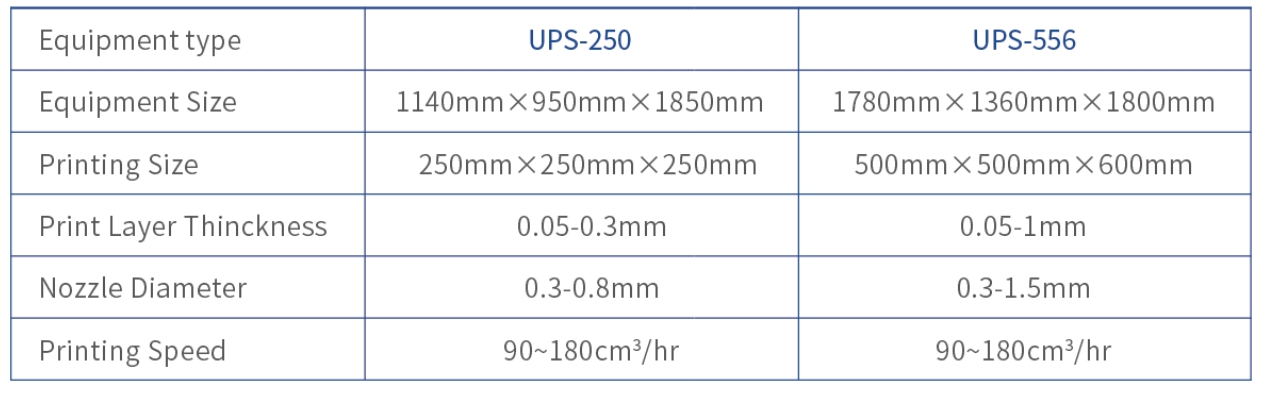

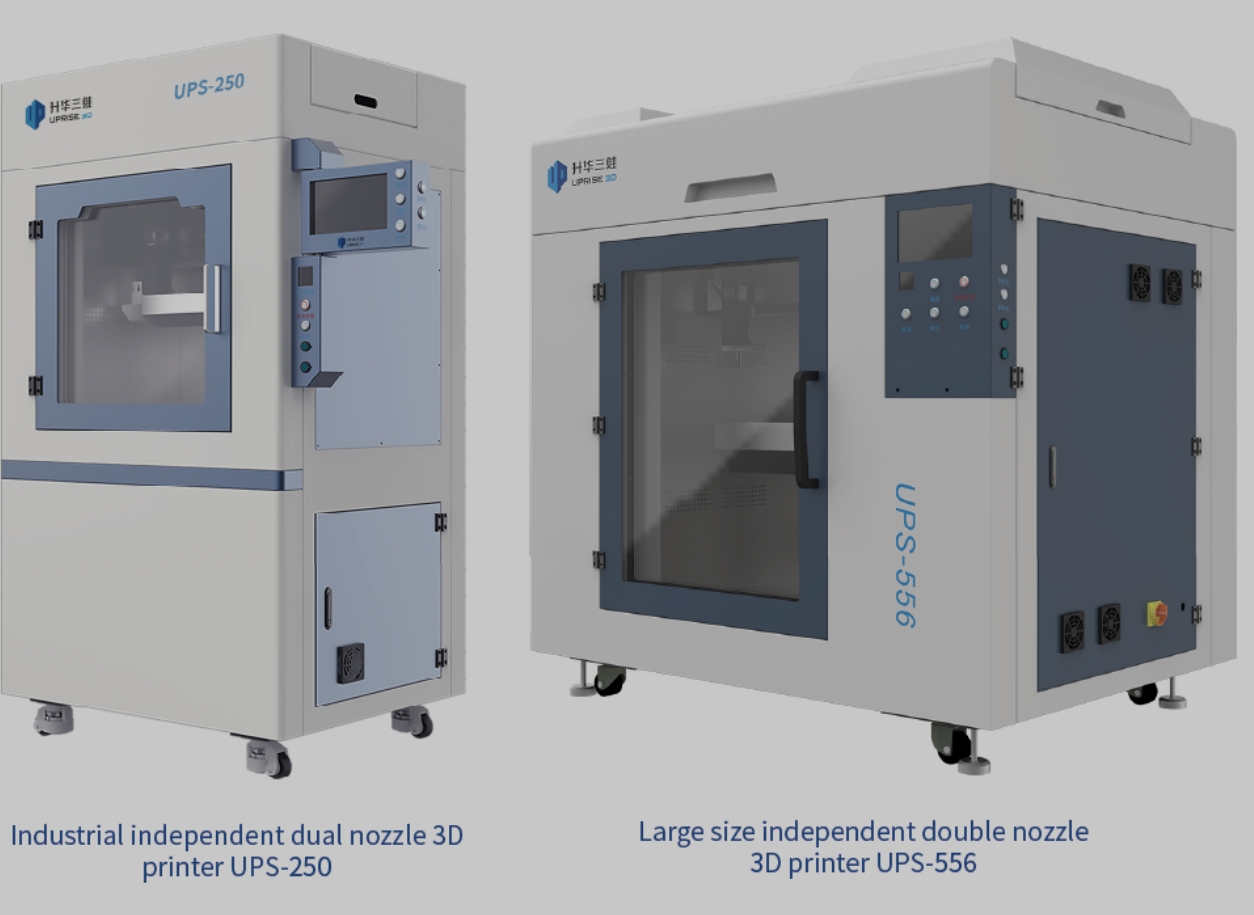

Metal & Ceramic 3D Printer
Based on PEP technology, UPRISE 3D launches two metal/ceramic 3D printer. Both adopt independent dual nozzle design, which can simultaneously or alternately print ceramic、metal, and ceramic/metal composite materials, achieving development of composite products with different materials and the preparation of complex structures.
Equipment Characteristics
  • Independent double nozzle
  • Multi-material printing
  • The printing material can be recycled
  • Negative pressure adsorption platform
  • Automatic feed function
  • Automatic nozzle wiping
  • Thermal risk control system
  • Intelligent operating system

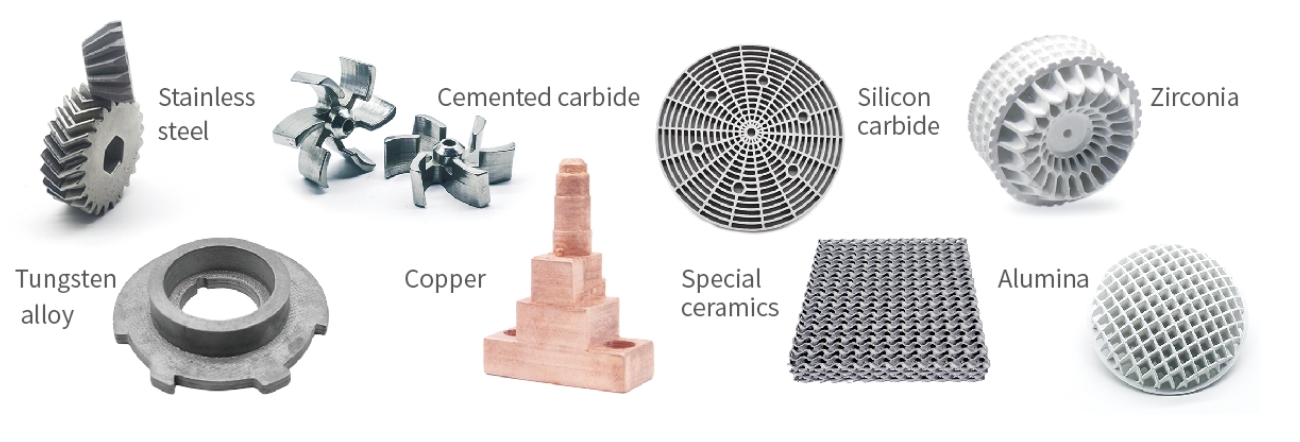

Printing Materials
While the 3D printing equipment is constantly upgraded and iterated, UPrise 3D also pays attention to the research and development of 3D printing materials. Successively developed suitable for UPrise 3D printer materials. For example: 316L/304/17-4PH stainless steel, copper, tungsten and tungsten alloy, high temperature alloy and other metal materials, and silicon carbide, Silicon nitride, zirconia, alumina and other ceramic materials, to meet the different needs of customers.
Contact information
ADD:Building 4B, Huiye Science Park, No.8 Huiye Road, Guangming District, Shenzhen
Tel:(+86)0755-2710 9017
