Product Description

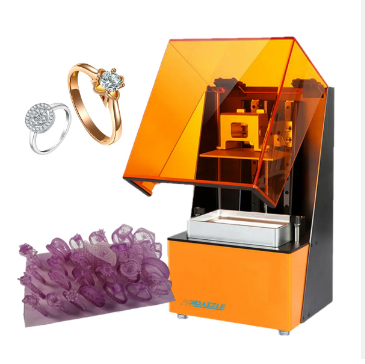

Hot Sales LCD Printer(Liquid Crystal Display) L120 3D Multi-color Printing Machine

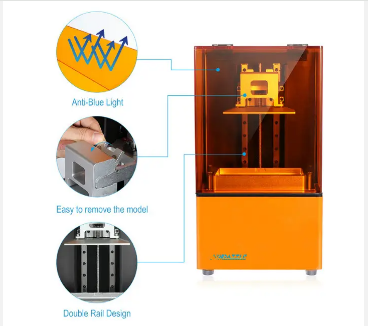

The L120 Basic is utilize 48W UV LED engine as light source, and ultra high precision dual Z-Axis slides to ensure the printing platform running stable, avoid missing layers during printing. Powerful Z-Axis motor and our own patent slicer software makes the printing speed up to 36 mm/hr.
We Specially developed multiple types resins compatible with the L120 basic 3D printer for different dental/jewelry/art applications, such as the WG5 dental model resin, HT7 dental model resin, TD02 temperatural crown resin, the SG03 biocompatible surgery guide resin, etc.
DAZZLE will keep developing more and more resins for the L120 series printer, makes the L120 basic 3D printer to be a better solution for dental applications.
Open resin source: compatible with 405 nm wavelength photosensitive resin in the market.
Stable mechanical design, over 95% aluminum alloy metal parts.
Easy to start connecting with the printer by using USB drive, WiFi, Ethernet.
Slicer software with a special AA (anti aliasing) algorithm. Free of charge for lifetime. Device Parameters
 Model
| Dazz 3D L120 Basic
| Technology
| LCD-SLA
| Machine Size
| 221*175*403mm
| Build Volume
| 120*68*150 mm /4.7×2.7×5.9 in
| Weight
| 6.5kg
| XY Resolution
| 0.047 mm
| Z Resolution
| 0.01 mm
| Printing Speed
| Up to 36 mm/h
| Light Source
| 48W, 405nm, purple LED
| Layer Thickness
| 0.02/ 0.035/ 0.05/ 0.1 mm
| Platform Leveling
| Self leveling
| Resin Tank
| FEP release film, aluminum alloy frame
| Pattern Generation
| 2K LCD panel/2560*1440px
| Software
| DDStarter
| Support
| Automatic and manual supports generation
| Input File
| STL./OBJ./SLC./DDEB./DDWP.
| Connectivity
| WiFi, USB and Ethernet Muti-printers control
| Offline Print
| Yes
| System Requirement
| Windows, Mac
| Power
| Input: 100-240V~ 50/60Hz 2.0A output: 24V DC 4.0A
| Rated Power
| 48 W
| Printing Material
| Dazzle 3D resins, 3rd party resin compatible
|
 Name
| Usage
| Name
| Usage
| 1. Network cable
| To connect printer and computer
| 7. Polishing sand paper
| To polish the support points
| 2. Power adaptor
| DC power supply
| 8. Cleaning bottle
| To clean the resin on the surface of molde
| 3. Resin Tank
| Printing material container
| 9. Cleaning tank
| To soak models
| 4. Forming platform
| Platform for model forming
| 10. Stainless scraper
| To remove the model after printing finished
| 5. Disposable
| To Filter the residue in resin
| 11. Disposable gloves
| To keep hands clean during & after treatment
| 6. Scraper
| To clean the residue in resin tank
| 12. Tooling frame
| To change the release film
|
      Packing&Shipping
For more information, please visit: http://www.dazz-3d.com/Contact:Email: dazz@dazz-3d.comPhone: +86 18520814727FAQ1) Are you a trading company or a manufacturer? We are professional 3D printer manufacturer for over 10 years and have two factories our own in Jiangsu with multiple standard modern production lines.
2) What goods can you provide?
We can provide high quality 3D printers, printing resin, ultrasonic cleaner and UV light curing machine, etc.
We have SLA printer(Stereo Lithography Apparatus), LCD printer(Liquid Crystal Display), DLP printer(Digital Lighting Progress), FDM printer(Fused Deposition Modeling) and so on.
We have casting resin, heat-resistant resin, standard resins, etc. Our hot sales resins are EC08(good for jewelry casting) and HT3(heat-resistant).
3) What certificates do you have for 3D printers?
Our products with good quality and have CE, FCC, RoHS, CSA certifications.
4) Can you put my brand name (logo) on the 3D printer(OEM/ODM service)?
Sure. We are very happy to provide more service for our customers so we sincerely invite overseas 3D printers' agent to create bright future together.
5) I’m a freshman in 3D printer technology. Can you teach me how to use the 3D printer machine?
Absolutely. We have professional technical engineer to support you, and use manual & related instructions for you. The machine is automatic and easy to operate for new beginners.
6) How will you deliver my goods to me?
We can ship 3D printing machine by air or sea, using Fedex DHL, UPS, TNT to enable our customers get their goods rapidly. We will choose the best delivery way in terms of time, safety and price.
7) Any warranty for overseas clients?
Sure. We have complete after-service system for both domestic and overseas clients. One year warranty for our 3D printer.
|
