Accelerating the Realization of Precision Medicine: Morphotron's Micro-Nano 3D Printing Tackles the High-Throughput Challenges of Organ-on-a-Chip Technology

Humanity continues to forge ahead in the quest to unravel the mysteries of life. Though the human body is composed of trillions of cells, ex vivo cultivation systems—resembling miniature biological factories and pharmaceutical testing platforms—hold transformative potential. These systems not only enable tissue repair through healthy cell transplantation but also simulate internal environments to assess drug safety, thereby advancing both life sciences and precision medicine.

Organoids and organ-on-a-chip technologies serve as critical tools for constructing intricate microtissue models. These innovations play pivotal roles in pathology research, drug screening, and novel drug development. Morphotron's ultra-high precision micro-nano 3D printing technology empowers the fabrication of high-throughput, high-fidelity, and high-performance biochips, injecting new momentum into frontier fields such as disease treatment, tissue engineering, and pharmaceutical innovation.

A Trillion-Dollar Industry Blueprint Fueled by Global Policy

Amid extended drug development cycles and surging demand for precision medicine, organoids and organ-on-a-chip technologies—renowned for their biomimetic accuracy and predictive efficiency—are emerging as key drivers of transformation across the industry. According to the '2024–2030 Industry Status and Trends of Organoids and Organ-on-a-Chip Technologies' report, the global market is projected to soar from USD 1.2 billion in 2018 to USD 15.6 billion by 2030, with a compound annual growth rate of 24%. Concurrently, population aging and rising incidences of chronic diseases are catalyzing the advancement of personalized and precision therapies. The potential applications of organ-on-a-chip technology in constructing disease models and tailoring treatment protocols are immense.

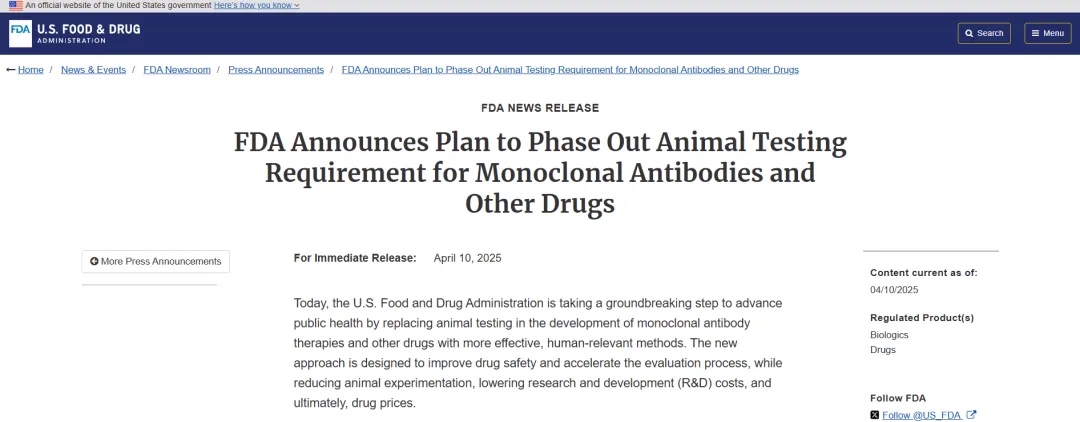

On the policy front, China’s 14th Five-Year Plan in 2021 designated ‘key technologies of organ-on-a-chip’ as a core research focus. In April this year, the U.S. FDA announced regulatory reforms to gradually replace traditional animal testing with laboratory-grown organoids and organ-on-a-chip platforms for drug safety assessments. This global policy shift not only affirms the scientific credibility of these technologies in replicating human physiological conditions but also underscores their foundational role in modern medical research.

At this pivotal juncture in the global transition toward precision biomedicine, Morphotron’s projection micro-stereolithography (PμSL) offers a highly efficient and cost-effective manufacturing solution for organ-on-a-chip devices. Through synergistic innovation between ultra-precise optical systems and high-performance material platforms, the technology enables 2μm-level printing resolution and supports a diverse array of materials including engineering resins, high-precision hydrogels, alumina, and zirconia. This addresses critical manufacturing challenges such as vascular network formation and multi-organ metabolic simulations, offering viable solutions for creating organ chips with clinical predictive value.

Decoding the Mysteries of Life: Precision Structures Reshaping R&D Paradigms

Let us revisit three landmark case studies of Morphotron’s micro-nano 3D printing technology in organ-on-a-chip research:

Breast Cancer Cell Extravasation Detection Chip — Southeast University

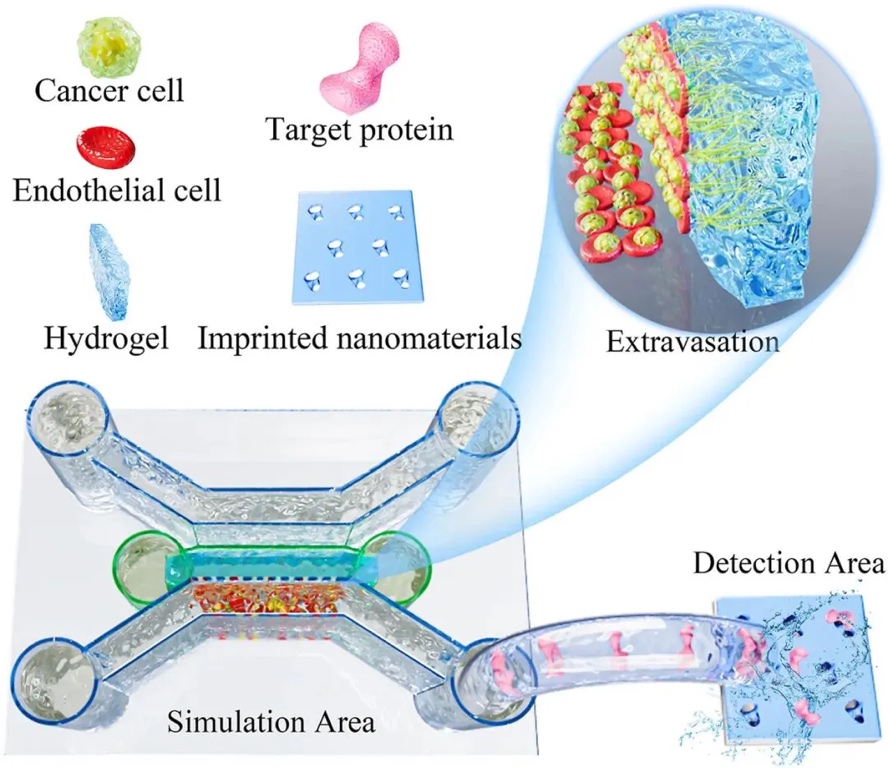

The research team led by Professor Wang Zhuyuan at Southeast University integrated 3D-printed organ-on-a-chip microfluidic platforms with SERS-based SPIN (Surface Protein Imprinting Nanomaterials) to study in vitro extravasation processes. The chip comprises collagen gel and vascular channels, into which human venous endothelial cells and breast cancer cells are sequentially introduced to induce extravasation.

The team employed Morphotron’s nanoArch® P150 (resolution: 25μm) to fabricate molds for casting microfluidic chips with channel heights of 300–600μm and injection port diameters of 4mm. This platform facilitates the investigation of cancer cell extravasation mechanisms, promoting drug discovery aimed at inhibiting metastasis.

DOI: 10.1016/j.talanta.2024.125633

Endocrine Pancreas-on-a-Chip — Shanghai University

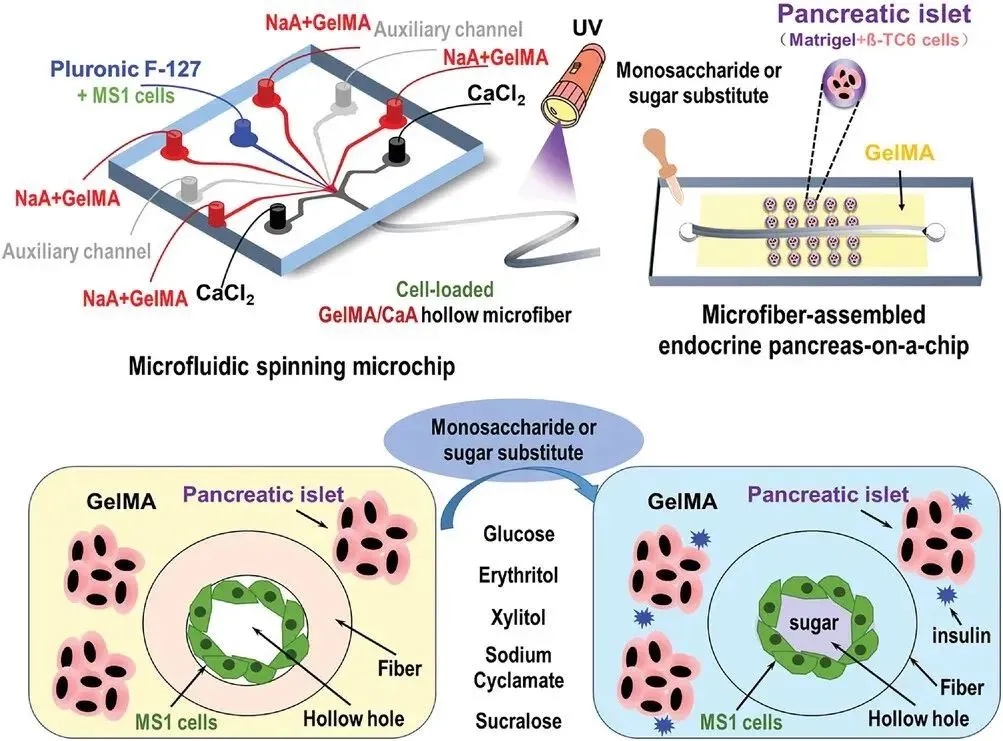

Professor Gao Xinghua’s team at Shanghai University’s Institute of Materials Genome Engineering developed a microfluidic chip to evaluate the safety of sugar substitutes in food additives. Using Morphotron’s nanoArch® S140 (resolution: 10μm), they printed molds that were cast and sealed with PDMS to form microfluidic spinning chips with channel heights ranging from 0.29–1.23mm and widths of 0.1–0.15mm.

This endocrine pancreas chip, based on microfibril assembly, integrates microfluidic spinning to simulate vasculature and combines it with 3D-cultured islets. It enables the evaluation of how glucose and various sugar substitutes affect islet cell viability and the secretion of insulin and glucagon—contributing to food safety research.

DOI: 10.1002/adhm.202302104

Transwell-Integrated Tumor Organoid Chip — Central South University

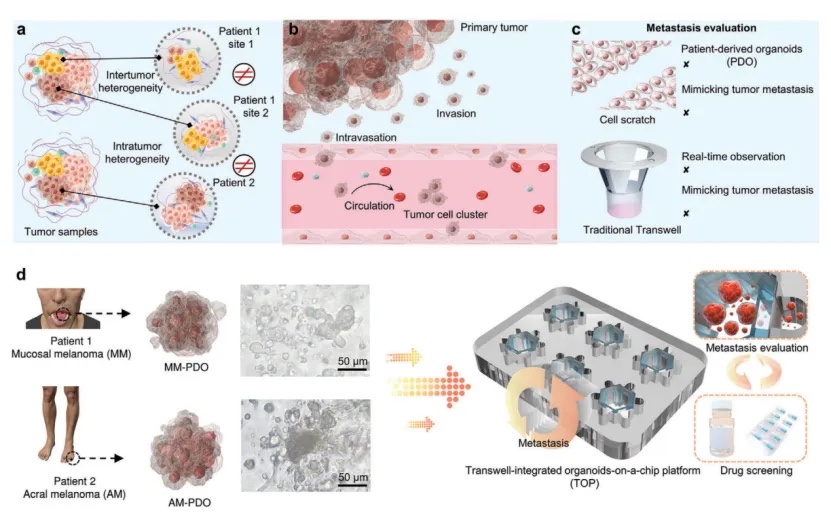

A multidisciplinary research team from Xiangya Hospital, the School of Mechanical and Electrical Engineering at Central South University, and the Three Gorges Hospital of Chongqing University developed a tumor organoid chip to assess tumor metastasis. The chip replicates the physiological processes of tumor growth and metastasis, enabling effective evaluation of cancer cell invasiveness and proliferation.

Using Morphotron’s nanoArch® S140 (resolution: 10μm), the team fabricated hexagonal scaffolds for the chip chambers and utilized laser cutting to produce the chip body. The final assembly—an integrated Transwell biomimetic tumor organoid chip—offers a powerful tool for studying metastasis and advancing tumor therapy and drug development.

DOI: 10.1002/smll.202308525

Composite Precision 3D Printing: Cross-Scale Manufacturing Capability

As a pioneer in ultra-high precision 3D printing systems, Morphotron has disrupted traditional micro-nano fabrication limitations, where resolution and size are typically mutually constrained. Leveraging composite-resolution photopolymerization and dual-precision equipment, Morphotron has achieved cross-scale processing from 2μm to 100mm × 100mm × 50mm—enabling the creation of intricate organoid and organ-on-a-chip architectures.

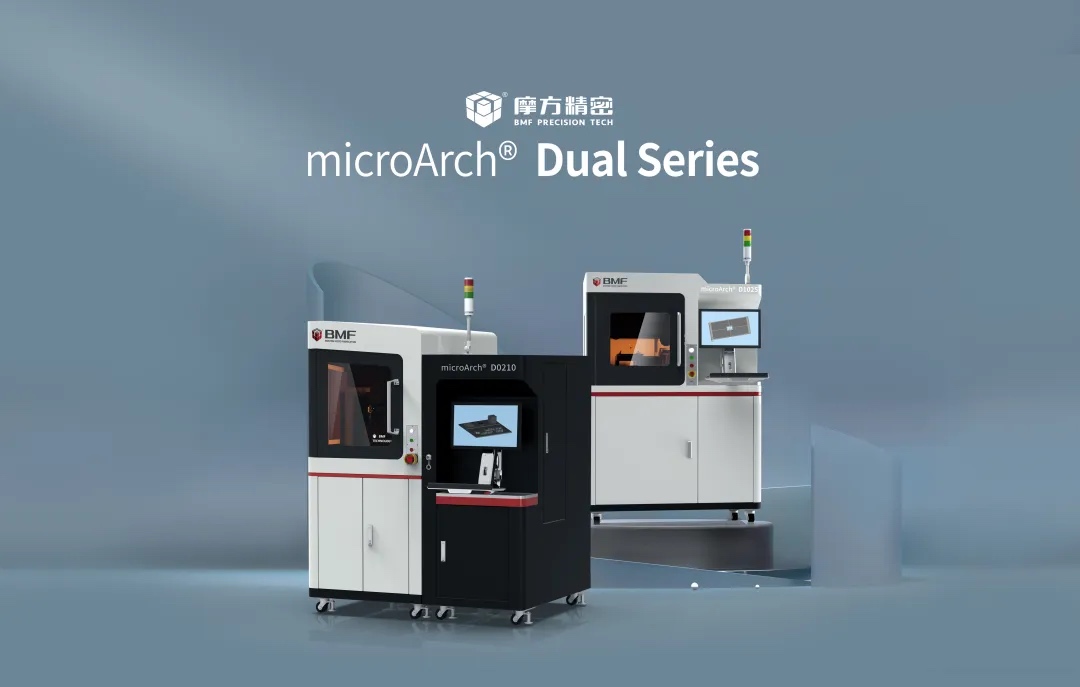

While safeguarding printing accuracy, Morphotron has significantly optimized production workflows through intelligent automation. Its microArch® Dual series incorporates automatic platform leveling, membrane alignment, roller adjustment, laser range-finding, and parameter automation—reducing setup time and boosting printing success rates. These systems support a wide variety of materials, including photosensitive resins and ceramic slurries, offering unprecedented possibilities for regenerative medicine and precision therapy.

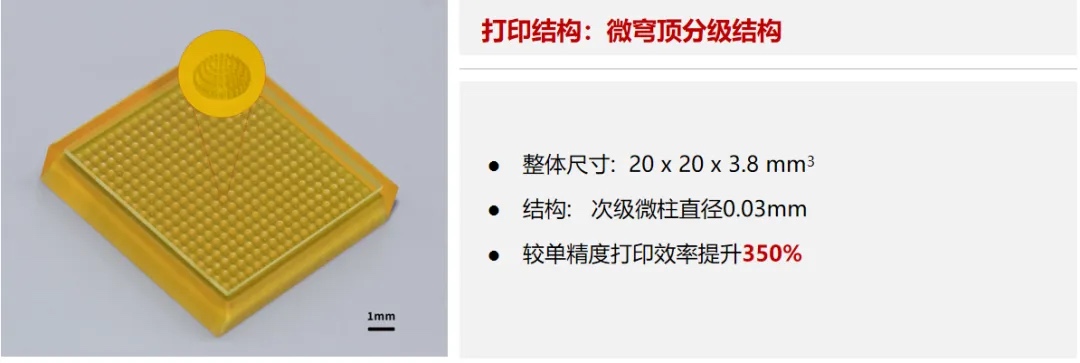

In industrial applications, the dual-resolution systems demonstrate exceptional advantages. Compared to single-resolution printing, the microArch® D0210 (2μm & 10μm) increases the efficiency of printing micro-dome hierarchical structures by 350%, breaking bottlenecks in mass production of precision devices. Furthermore, their capability for customized structural design and functional diversification of organoid chips enhances cost-efficiency, accelerates R&D, and enables personalized solutions.

While traditional technologies still struggle with singular structure manufacturing, Morphotron opens new frontiers for global researchers—where each chip design is a foray into the secrets of life, and every bespoke solution marks a breakthrough in scientific discovery.
