70% Cost Reduction and One-Day Lead Time: Raise3D's Innovative Approach to Welding Fixture Manufacturing

As the pace of manufacturing accelerates, the welding industry is under increasing pressure to meet higher production demands. The efficiency, cost, and flexibility of fixture and jig fabrication have become critical factors in determining whether enterprises can rise to these challenges. Although traditional metal fixtures are known for their durability, they come with significant drawbacks: high costs, long lead times, and difficulty adapting to changes.

To address these issues, Raise3D has released the *3D Printing Guide for Welding Fixtures and Jigs*, empowering welding engineers to take a decisive step toward faster, more economical, and more agile manufacturing using 3D printing technology.

The “Three Highs” Dilemma of Traditional Fixture Manufacturing

In industries such as automotive manufacturing, mechanical processing, vocational education, and construction, fixtures and jigs play a pivotal role in positioning, supporting, and preventing deformation of workpieces. However, conventional metal fixture production relies heavily on CNC machining and faces the following persistent challenges:

* High Cost: Custom CNC metal fixtures typically cost between ¥1,800 and ¥2,900 per unit, with costs multiplying for larger orders.

* Long Lead Times: From design to CNC machining and final tuning, delivery can take anywhere from 7 to 20 days.

* Lack of Flexibility: Any change in workpiece or process parameters requires retooling or reworking, leading to extended design iteration cycles and increased project costs.

Raise3D’s New Industrial-Grade 3D Printing Solution for Welding Fixtures

The *3D Printing Guide for Welding Fixtures and Jigs* offers an in-depth exploration of how Raise3D leverages high-performance additive manufacturing to deliver an efficient, cost-effective, and adaptable alternative for the welding sector.

1. 70% Cost Reduction, 10x Efficiency Gain

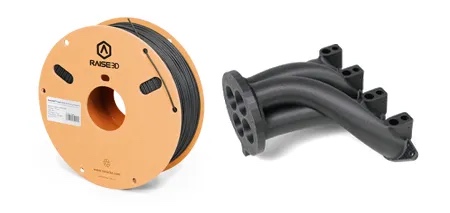

* Material Innovation: Utilizing carbon fiber-reinforced Hyper Core™ PPA CF25 with tensile strength exceeding 118 MPa and heat deflection temperature up to 197°C, ideal for high-temperature welding conditions.

* Cost Comparison: Total cost for three fixtures is only ¥628—just 30% of the traditional approach.

* Printing Efficiency: A single fixture can be printed in as little as 1.5 hours. Dual-extrusion synchronous printing enables batch production with delivery possible within 24 hours.

2. Industrial-Grade Equipment Performance on Par with Metal Fixtures

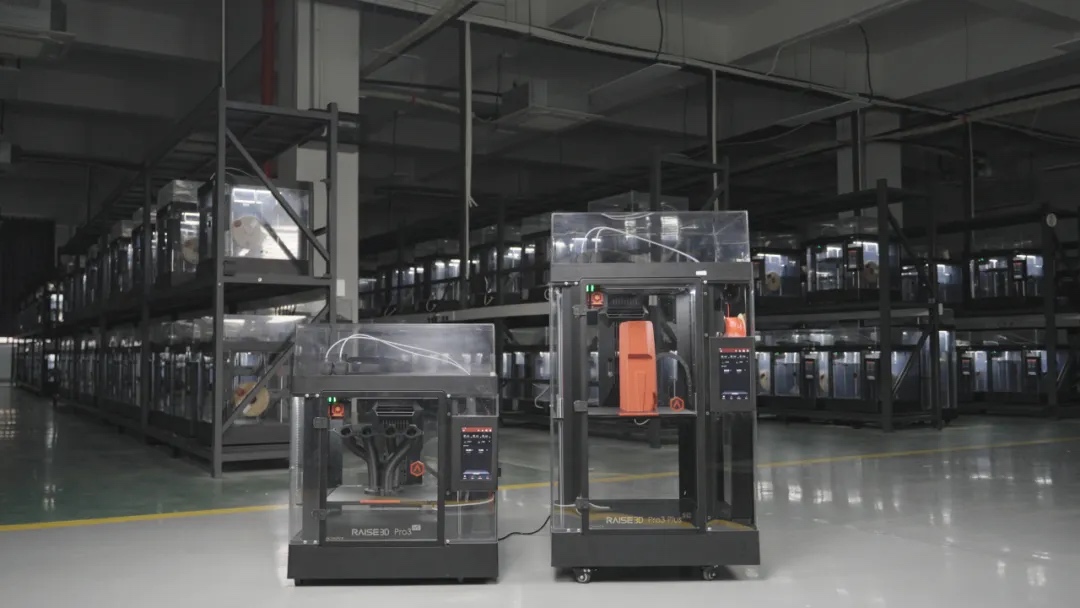

The Raise3D Pro3 HS is engineered for demanding industrial applications:

* High-Speed Precision: Capable of reaching 500 mm/s with a dimensional tolerance of ±0.05 mm, and equipped with a closed-loop stepper system to ensure structural stability and assembly precision.

* Heat and Strength Endurance: Compatible with high-performance carbon fiber materials, with silicon carbide nozzles supporting continuous carbon fiber printing for long-duration, high-strength welding operations.

3. Flexible Design and On-Demand Production

* Design-to-Production: Modifications require no mold changes—just update the CAD model and print, accommodating small batches and frequent product changes.

* Functional Integration: Structural elements such as heat-set inserts, alignment holes, and hooks can be pre-designed and printed in one go, eliminating secondary processing.

* Lightweight and Easy Maintenance: Thermoplastic materials weigh only one-third of metal equivalents, easing handling and reducing labor intensity and storage needs.

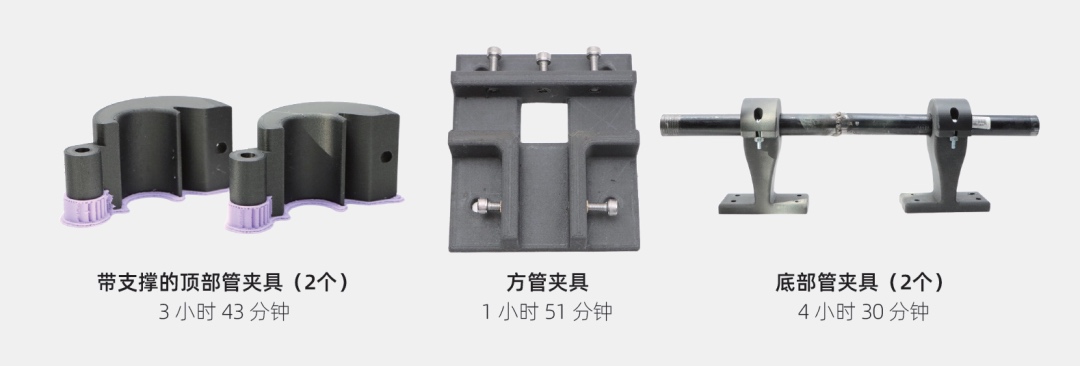

Application Case: MIG Welding Pipe Fixture

In a metal inert gas (MIG) welding context, Raise3D’s solution meets stringent requirements for fixture precision, heat resistance, and stability:

* Total Cost: ¥628 for three printed fixtures

* Total Printing Time: 10 hours and 4 minutes

* Structural Design: 35% infill strikes a balance between strength and efficiency

* Post-Processing Recommendation: Oven annealing at 80–100°C for 4–8 hours enhances thermal stability

Download the *3D Printing Guide for Welding Fixtures and Jigs* Now

3D-printed fixtures have demonstrated excellent real-world performance in welding applications—lower costs, shorter lead times, and structurally reliable—delivering substantial improvements in production efficiency.

If you're looking to dive deeper into:

* How 3D printing optimizes both cost and lead time for fixture production;

* Performance validation of carbon fiber-reinforced materials in high-temperature welding;

* Structural design and process configuration in real-world applications;

Scan the code to download the full version of the *3D Printing Guide for Welding Fixtures and Jigs*. Gain insights into industry trends and Raise3D’s solutions, and step confidently into the era of smart welding manufacturing.
