Anlun Optics is a factory specializing in optical design, ultra precision mold development , high-precision lens customization and integrated injection moldingHome. The company has a professional R&D team with practical experience in optical molds , as well as multiple high-tech lens injection molding and adjustment technicians , with over 20 years of experienceExperienced overseas optical design professors and professional optical design talents with practical experience provide diversified optical solutions . widely Applied to LED lighting,stage lighting,medical optics,solar optical lenses,car light optical lenses, artificial intelligence,imaging optics,forln thefields of biomedicine,dental medicine,cultural and creative design,education and research,prototype molds,construction engineering,jewelry design,shoe mold manufacturing,etcSolidified 3D printing equipment provides diversified light source solutions!
The company owns Toshiba Ultra Precision MicromachiningCNC from Japan,Taiwan Xinquan High Speed CNC,Beijing Jingdiao High Speed CNC,and Western Japan SlowWire walking,PG optical grinding, Shadik mirrorspark machine,Zeiss 3D and other testing equipment.Strictly follow the IS019001 quality assurance system,To provide customers with high-quality optical products and services through standardized workflows,and with a business philosophy of integrity and innovation,to meet and surpass customersOurultimate goal is to meet the expectations of our customers.Always adhere to the principle of "customer-centric,driven by scientific and technological innovation,people-oriented," The guiding principle of "win-win cooperation".We strictly adhere to delivery deadlines,meet customer needs,and create value for customers with quality and efficiency.The company relies on completingGood solutions, high-quality products,reasonable prices,and excellent services have won unanimous praise from domestic and foreign customers!
3D PRINTING COB ILLUMINANT
6.6-7.1" COB DIRECT PROJECTION LIGHT SOURCE
Model: ALCOB7-ZT001
Light source specification: 255.52 * 105.2 * 208.09MM
LED COB UV light source: 6 * 6/8 * 8
Exposure size: 165 * 88MM
Uniformity: 94%
Heat dissipation: Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer

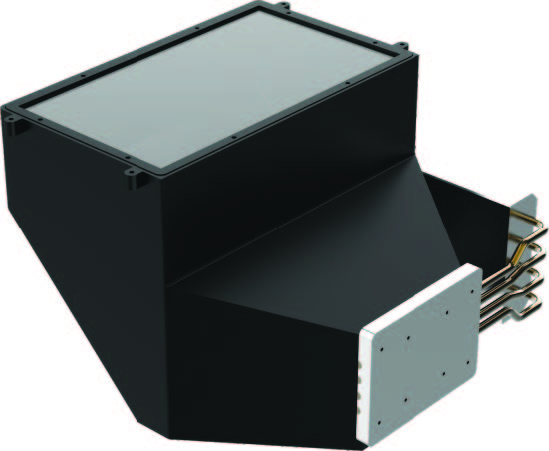

6.6-7.1" COB REFLECTIVE LIGHT SOURCE
Model: ALCOB7-FS001
Light source specification: 204.19 * 177.51 * 121.25MM
LED COB UV light source: 6 * 6/8 * 8
Exposure size: 165 * 88MM
Uniformity: 94%
Heat dissipation: Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
6.6-7.1" DIRECT PROJECTION LIGHT SOURCE
Model: ALCOB7-ZT002
Light source specification: 232.25 * 137.07 * 159.9MM
LED COB UV light source: 6 * 6/8 * 8
Exposure size: 169.85 * 108.54MM
Uniformity: 93%
Heat dissipation: Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
10.1-10.3" DIRECT PROJECTION LIGHT SOURCE
Model: ALCOB10.1-ZT002
Light source specification: 291.34 * 153.39 * 142MM
LED COB UV light source: 8 * 8
Exposure size: 132.1 * 231.9MM
Uniformity: 92%
Heat dissipation: Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer

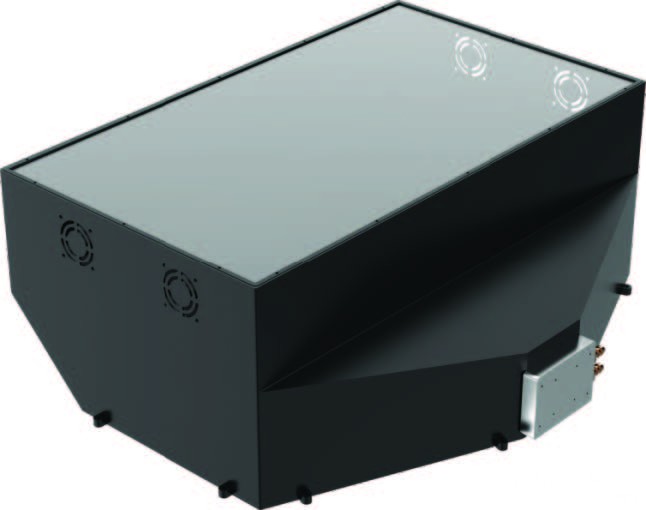

10.1-10.3" PARALLEL INTEGRATED LIGHT SOURCE
Model: ALCOB10.3-FS
Light source specification: 275.49 * 243.82 * 129.5MM
LED COB UV light source: 8 * 8/12 * 12/16 * 16
Exposure size: 231.9 * 132.1MM
Uniformity: 93%
Heat dissipation: water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
13.6-14" PARALLEL INTEGRATED LIGHT SOURCE
Model: ALCOB13.6-FS
Light source specification: 378.5 * 244.5 * 205MM
LED COB UV light source: 12 * 12/16 * 16
Exposure size: 300.2 * 167MM
Uniformity: 92%
Heat dissipation: water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer

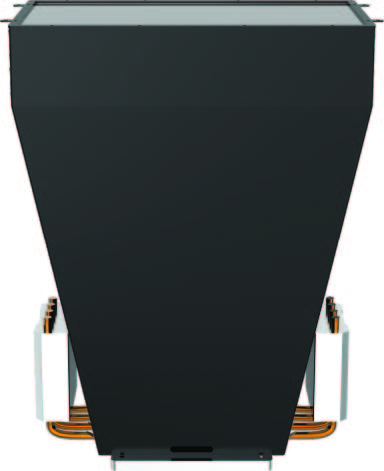

10.1-10.3" DIRECT THROW TELEPHOTO COB LIGHT SOURCE
Model: ALCOB10.1-ZT001
Light source specification: 271.1 * 147.9 * 373.41mm
LED COB UV light source: 16 * 16
Exposure size: 247 * 147.9mm
Uniformity: 98%
Heat dissipation: water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: High end floor standing 3D printing machines

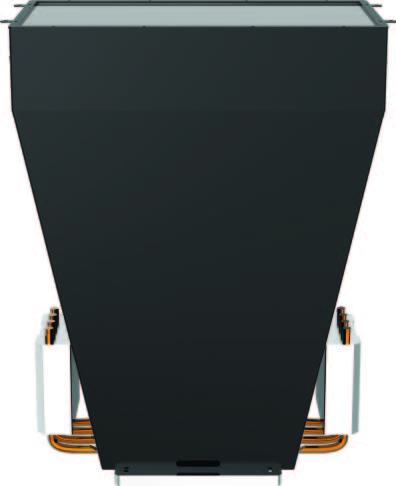

13.6-14" DIRECT THROW TELEPHOTO COB LIGHT SOURCE
Model: ALCOB14-ZT001
Light source specification: 316 * 187 * 413.41MM
LED COB UV light source: 16 * 16
Exposure size: 314 * 185MM
Uniformity: 98%
Heat dissipation: water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: High end floor standing 3D printing machines
15-16" PARALLEL INTEGRATED LIGHT SOURCE
Model: ALCOB16-FS
Light source specification: 401.68 * 354.77 * 255MM
Exposure size: 356.2 * 201MM
LED COB UV light source: 12 * 12/16 * 16
Uniformity: 95%
Heat dissipation: Water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
23.8" PARALLEL INTEGRATED LIGHT SOURCE
Model: ALCOB23.8-FS
Light source specification: 570 * 535 * 336MM
Exposure size: 527 * 296.2MM
LED COB UV light source: 16 * 16
Uniformity: 93.5%
Heat dissipation: Water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
32" PARALLEL INTEGRATED LIGHT SOURCE
Model: ALCOB32-FS
Light source specifications: 743.2 * 612.91 * 426.71mm
LED COB UV light source: 16 * 16
Exposure size: 700.2 * 400.2mm
Uniformity: 93%
Heat dissipation: water-cooled heat dissipation; Copper tube heat dissipation
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
3D PRINTING MATRIX ILLUMINANT

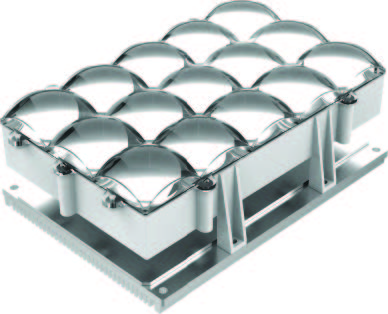

6.6-7.1" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ6.6-15
Specification: 168 * 110 * 59.5MM
LED JZ UV light source: 3 * 5
Exposure size: 150 * 90MM
Uniformity: 93%
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
6.08-6.6" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ6.08-15
Specification: 156.1 * 104 * 69.19MM
LED JZ UV light source: 3 * 5
Exposure size: 135.85 * 84.6MM
Uniformity: 93%
UV LED: 365-405 wavelength
Scope of application: UV cured 3D printer
6.6-7.6" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ7.6-15
Specification: 193 * 125 * 70.5MM
LED JZ UV light source: 3 * 5
Exposure size: 175 * 105MM
Uniformity: 93%
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer

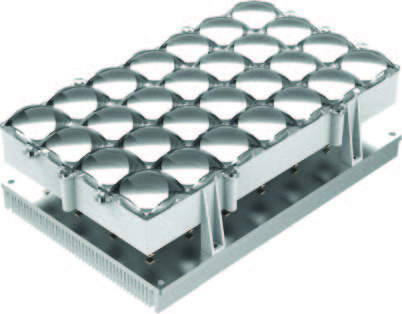

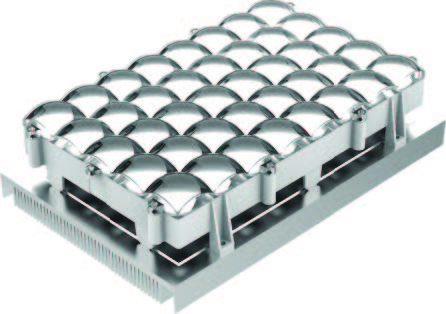

8.9-9.25" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ8.9-40
Specification: 240 * 155 * 67.73MM
UV LED: 5 * 8
Exposure size: 212.5 * 133MM
Uniformity: 92%
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer

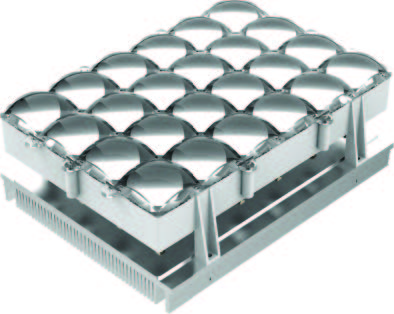

8.9-9.25" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ9.25-24
Specification: 222 * 156 * 78.82MM
UV LED: 4 * 6
Exposure size: 204 * 136MM
Uniformity: 92%
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
10.1-10.3" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ10.3-28
Specification: 249 * 155 * 78.98MM
UV LED: 4 * 7
Exposure size: 231 * 132MM
Uniformity: 92%
UV LED: 365 ~ 405 wavelength
Scope of application: UV cured 3D printer
10.3" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ10.3-112
Specification: 249 * 152 * 51.03MM
LED JZ UV light source: 8 * 14
Exposure size: 231 * 132MM
Uniformity: 93%
UV LED with wavelengths ranging from 365 ~ 405
Scope of application: UV cured 3D printer
10.3" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ13.6-54
Specification: 260 * 180 * 57.01MM
LED JZ UV light source: 6 * 9
Exposure size: 234 * 156MM
Uniformity: 93%
UV LED with wavelengths ranging from 365 ~ 405
Scope of application: UV cured 3D printer
13.6-14" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ13.6-45
Specification: 306 * 215 * 82.85MM
LED JZ UV light source: 5 * 9
Exposure size: 298 * 165MM
Uniformity: 93%
UV LED with wavelengths ranging from 365 ~ 405
Scope of application: UV cured 3D printer
13.6-14" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ13.6-84
Specification: 340 * 215.1 * 62.3MM
LED JZ UV light source: 7 * 12
Exposure size: 300 * 175MM
Uniformity: 94%
UV LED with wavelengths ranging from 365 ~ 405
Scope of application: UV cured 3D printer
15-16" PARALLEL MATRIX LIGHT SOURCE
Model: ALJZ16-66
Specification: 382.6 * 215 * 73.75MM
LED JZ UV light source: 6 * 11
Exposure size: 363.57 * 198.22mm
Uniformity: 94%
UV LED with wavelengths ranging from 365 ~ 405
Scope of application: UV cured 3D printer

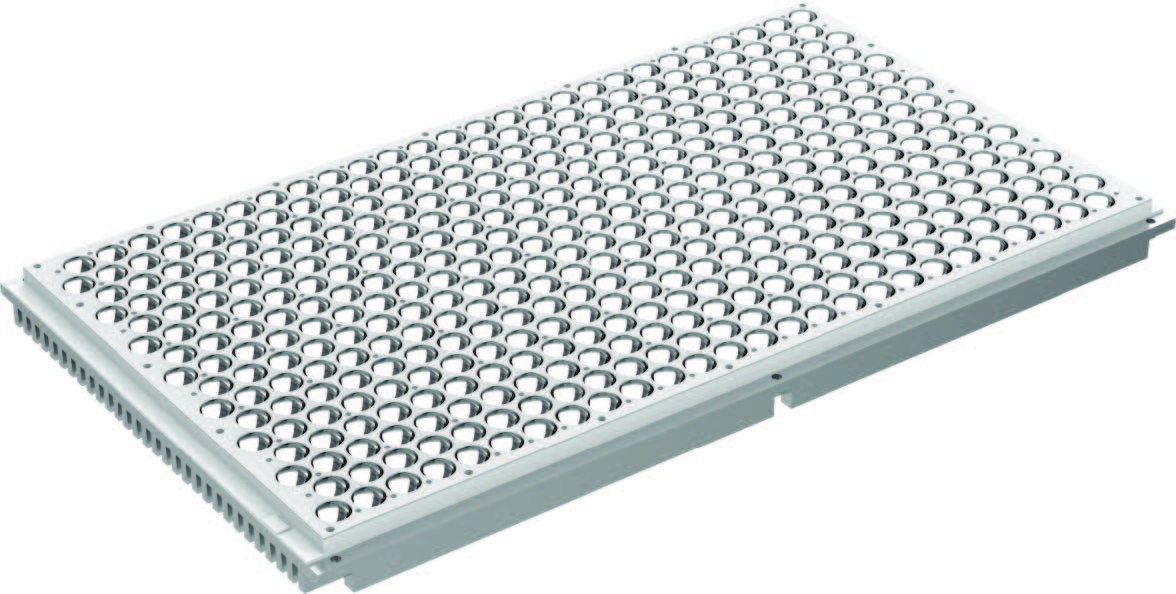

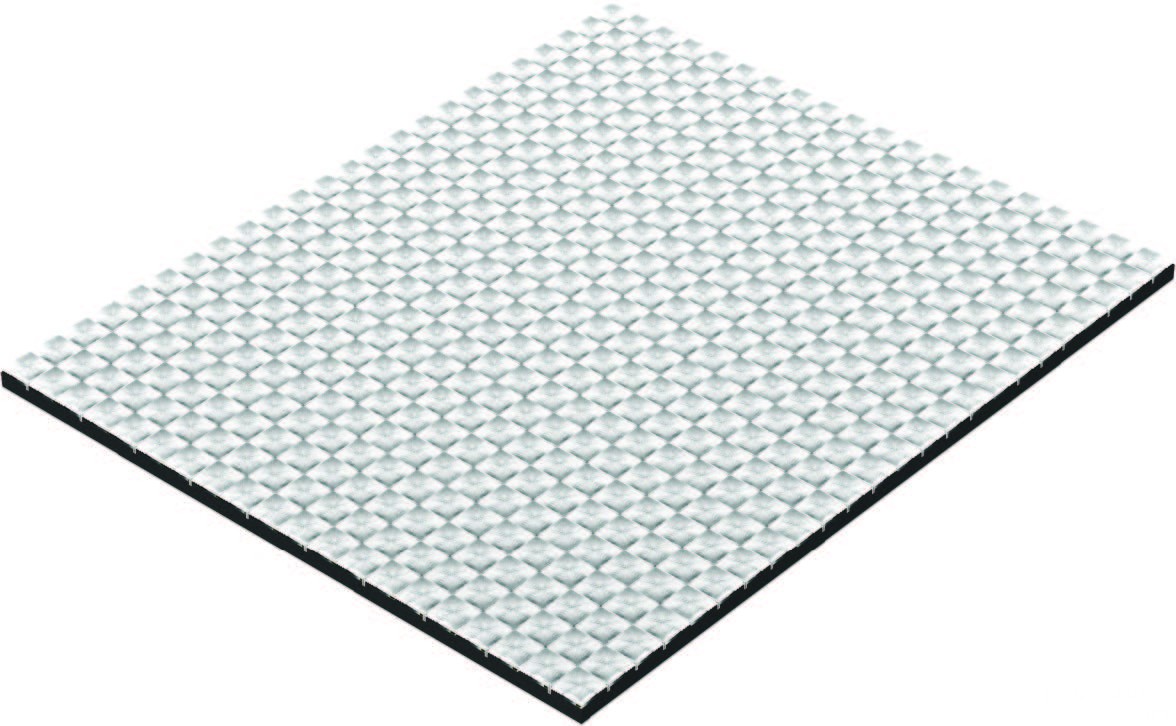

LARGE SIZE ARRAY SPLICING
ARBITRARY SPLICING OF LARGE SIZES
65"
32-200 inches can be spliced together
Light source specification: 146.6 * 92.5 * 21.4MM
LED JZ UV light source: 34 * 60
Exposure size: 1440 * 816mm
Uniformity: 93%
Scope of application: Large size photopolymerization 3D printer
SPLICING 23.8" PARALLEL MATRIX LIGHT SOURCES
Model: ALJZ23.8-416
Specification: 588.5 * 338 * 32MM
LED JZ UV light source: 16 * 26
Exposure size: 553.8 * 303.3MM
Uniformity: 94%
UV LED: 365-405 wavelength
Scope of application: UV cured 3D printer
