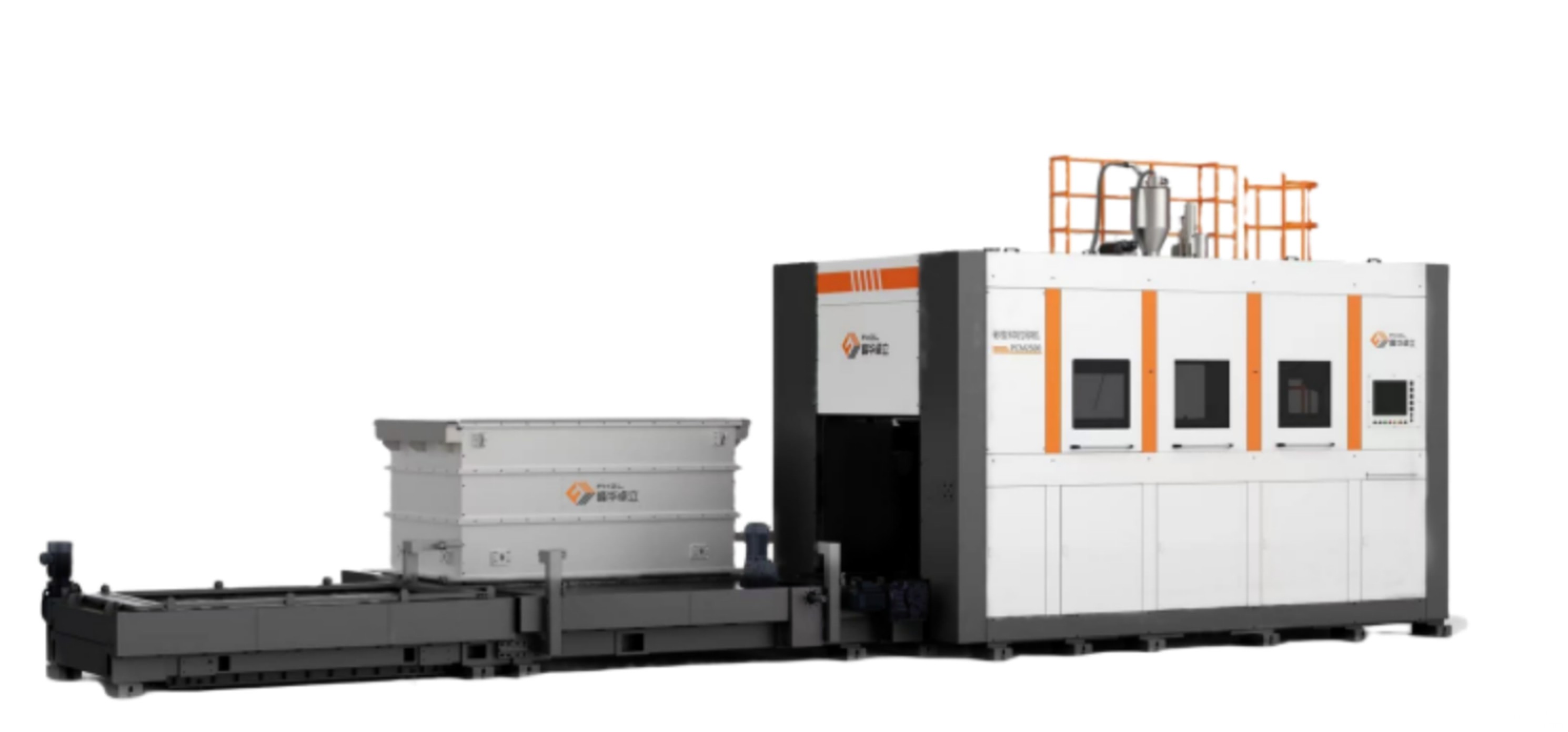

Ceramic 3D PrinterBJC2500
TECHNICAL SPECIFICATION
Max build Size(mm):2500（L）×1500（W）×1000（H）
layer thickness (mm):0.2-0.4
Printing Resolution（mm）:±0.4
Printing material：Oxide carbide, nitride, ceramic powder, etc
Binder Type:FH-1（Furan resin）、FH-2(Inorganic binder)
CHARACTERISTIC
- large print format, the choice of industrial mass production;
- Adopt accurate inkjet system, with automatic moisturizing, automatic cleaning function, nozzle normal working time > 5000 hours, no clogging;
- Is suitable for the printing production of the third generation semiconductor materials, improve production efficiency, reduce production costs, and have the printing function of both fine powder and coarse powder.

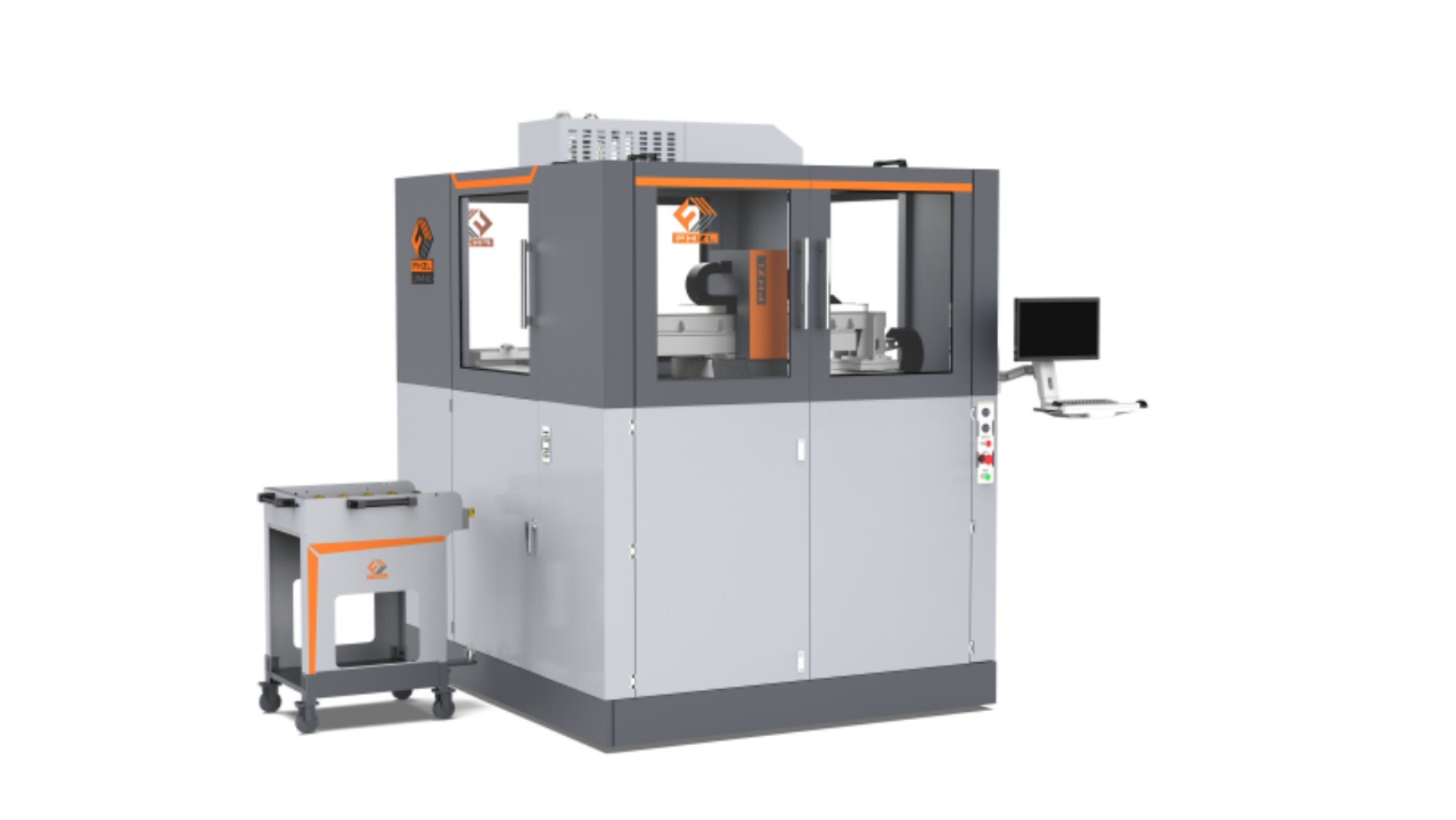

Ceramic 3D PrinterBJC430
TECHNICAL SPECIFICATION
Max build Size(mm):430（L）×375（W）×300（H）
Printing speed（s/layers）：60
layer thickness (mm):0.2-0.4
Printing Resolution（mm）:±0.3
Printing material：Alumina, gypsum, carbide, nitride ceramic powder, etc
Binder Type:FH-1（Furan resin）、FH-2(Inorganic binder)
CHARACTERISTIC
- Suitable for education and scientific research, rich printing material system;
- Open source design, open software and materials;
- Multi-function paving powder and module, for the development of powder and binder advantages;
- Industrial configuration, small and medium-sized products cost-effective choice.

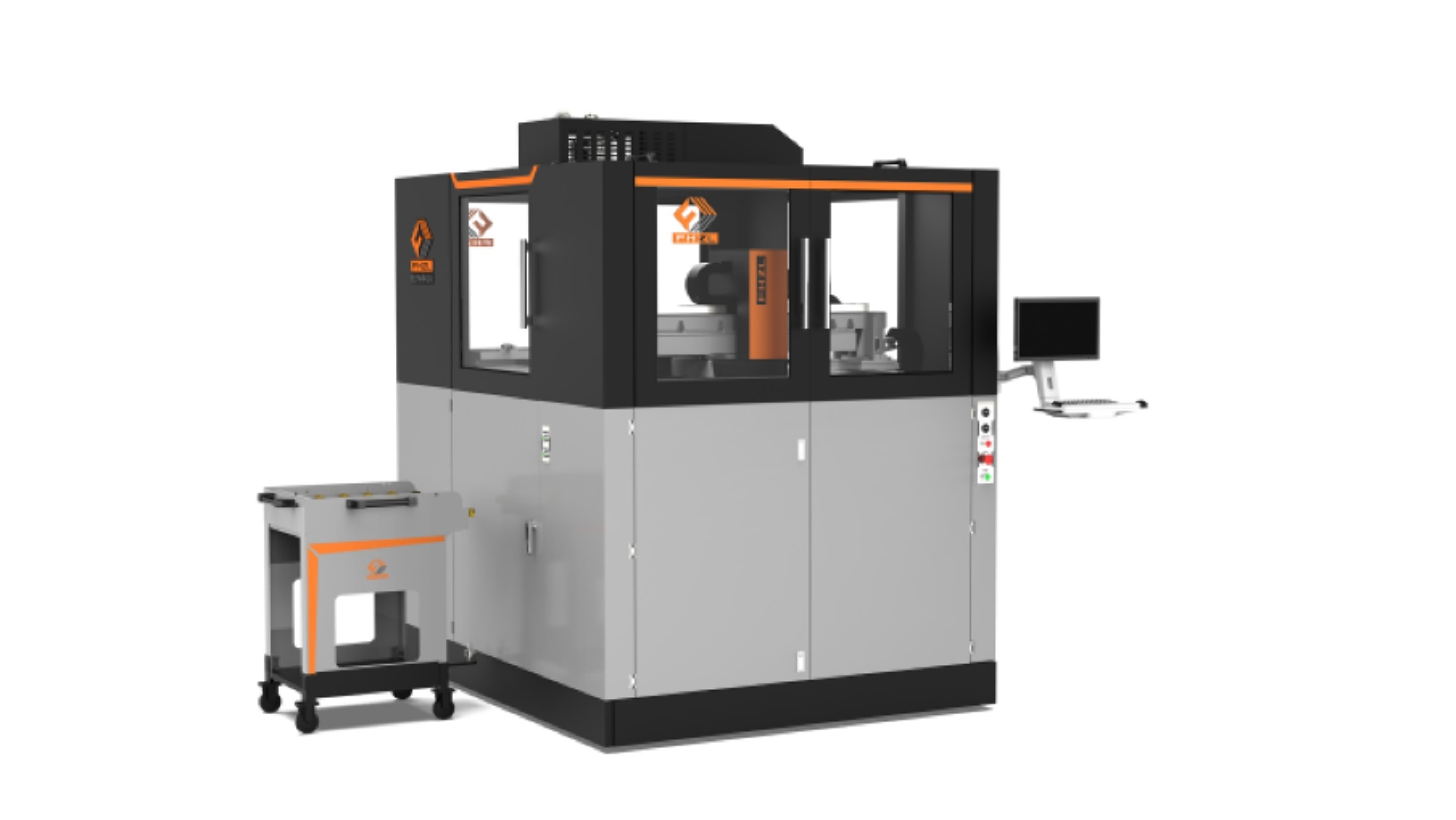

Metal 3D Printer BJM430
TECHNICAL SPECIFICATION
Max build Size(mm):460（L）×375（W）×300（H）/160（L）×125（W）×80（H）
Printing speed（s/layers）：30
layer thickness (mm):0.05-0.25
Printing Resolution（mm）:±0.15
Printing material：316L\17-4PH\Cu\TC4...
Binder Type:FH-4（Green binder）/FH-5
CHARACTERISTIC
- has large and small cylinder configuration, integrating R & D and mass production. The molding cylinder is designed for large and small cylinders (160*125*80mm & 460*375*300mm), which can meet the printing test needs of various materials, as well as the large size and batch printing and molding needs of aerospace, automotive, medical, scientific research, mold and other industries.
- printing system adopts matrix layout, printing resolution is 400/720/1440dpi, customers can choose different resolutions according to the precision, printing speed, different application scenarios and other requirements;
- Configure the independent negative pressure management system of the sprinkler head, and print automatic error correction optimization algorithm. The sprinkler head system can work independently or jointly to avoid the termination of the printing system due to the damage of a single sprinkler head, and improve the stability and reliability of the equipment;
- provides online monitoring function to realize automatic error correction, self-moisturizing and self-cleaning of sprinkler during real-time printing; With the successful use of water-based low-carbon binder, the service life of the sprinkler can be more than 2 years, and the after-sales maintenance cost is lower;
- powder multi-layer compaction function, green printing density up to 68%.

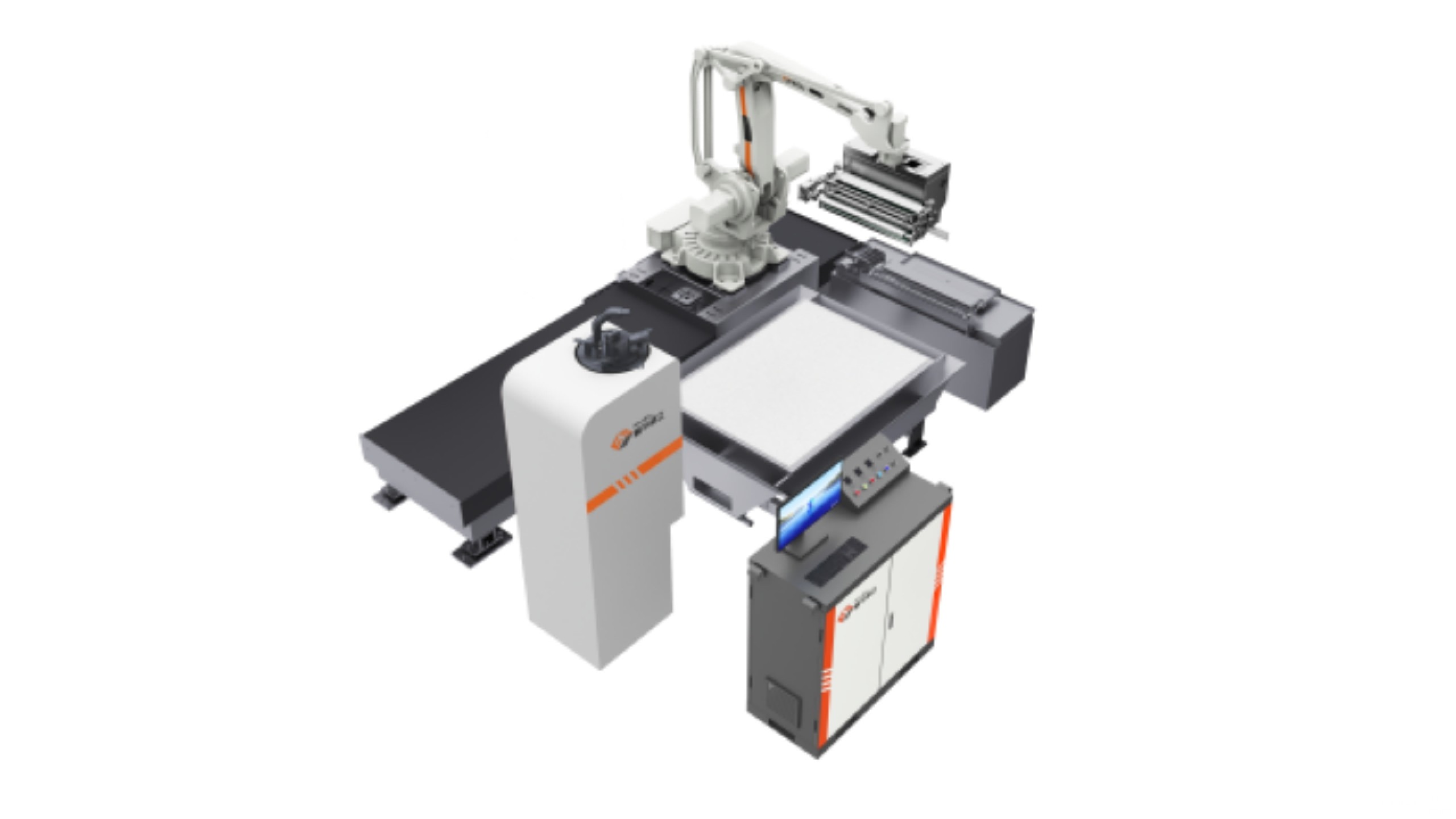

Sand 3D printer PCM800R
TECHNICAL SPECIFICATION
Max build Size(mm):800（L）×500（W）×300（H）
Printing speed（s/layers）：15
layer thickness (mm):0.3-0.5
Printing Resolution（mm）:±0.35
Printing material：Quartz sand,ceramic sand,synthetic sand,CB sand etc.
Binder Type:FH-1、FH-2、FH-3
CHARACTERISTIC
- The mechanical arm printing system occupies a smaller footprint to meet different work scenarios and production needs;
- Achieve visual AI automatic error correction function, timely repair printing errors, and continue to print, avoid material waste;
- Configure consumables and consumable parts life cycle management system, service maintenance timely reminder, improve the long-term operation of equipment.

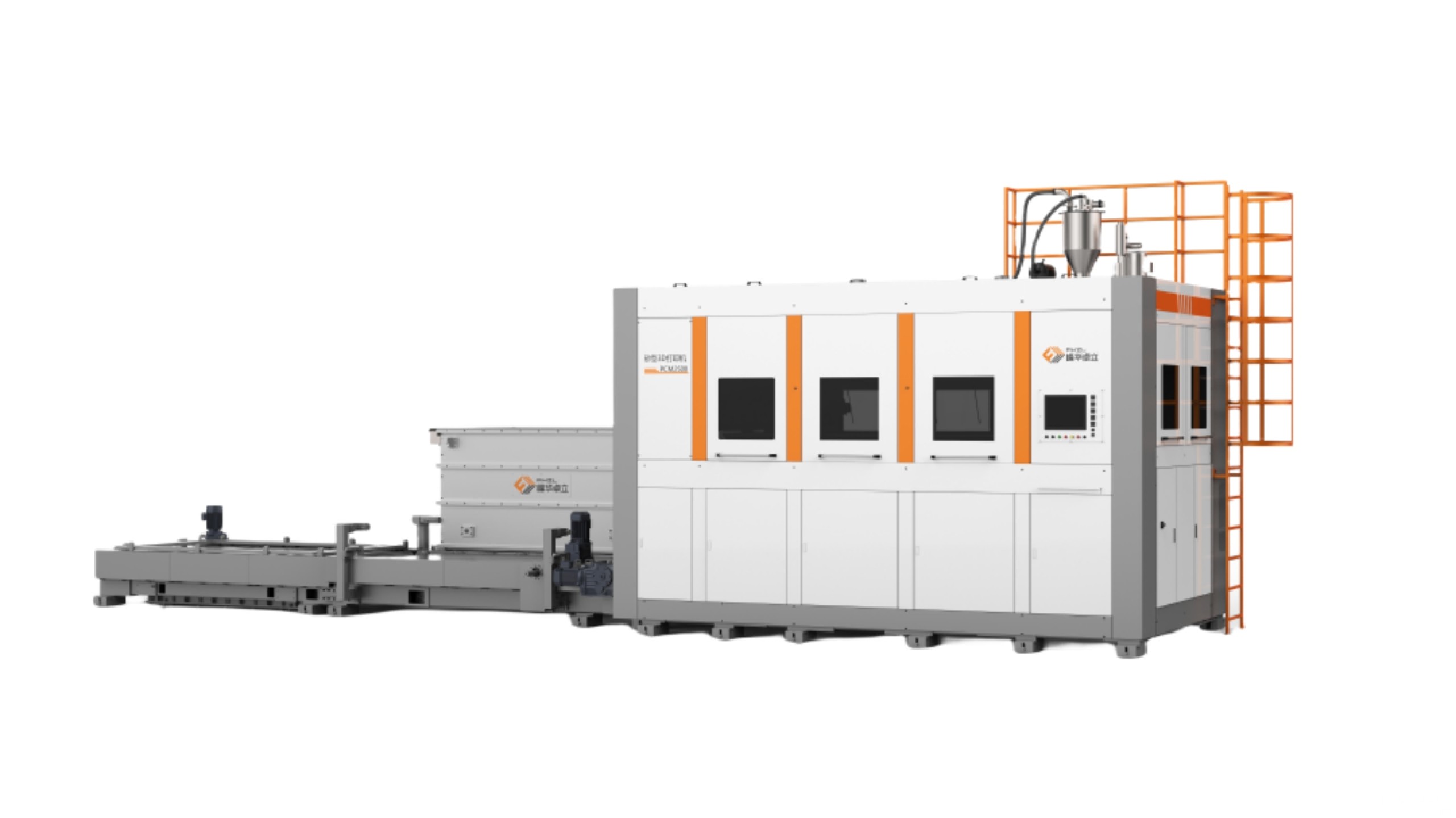

Sand 3D printer PCM2500
TECHNICAL SPECIFICATION
Max build Size(mm):2500（L）×1500（W）×1000（H）
Printing speed（s/layers）：25
layer thickness (mm):0.2-0.5
Printing Resolution（mm）:±0.15
Printing material：Quartz sand,ceramic sand,synthetic sand,CB sand etc.
Binder Type:FH-1、FH-2、FH-3
CHARACTERISTIC
- Mass high efficiency sand mold production mode, larger size
- Intelligent, remote functions are available, optional 24-hour monitoring system
- The new and old materials are mixed and recycled in the sand online, which greatly reduces the operating cost
|
