16/32-Laser High-Efficiency Collaboration: Empowering Large-Scale Precision Parts for Mass Production – Farsoon Technologies FS1521M Series

In high-end fields such as aerospace, automotive manufacturing, and energy equipment, the rapid advancement of technology and the burgeoning market demand have led to a significant increase in the need for large-scale precision components. However, the production of these parts has long been constrained by extended manufacturing cycles and high costs, necessitating a breakthrough in efficient and stable process technologies.

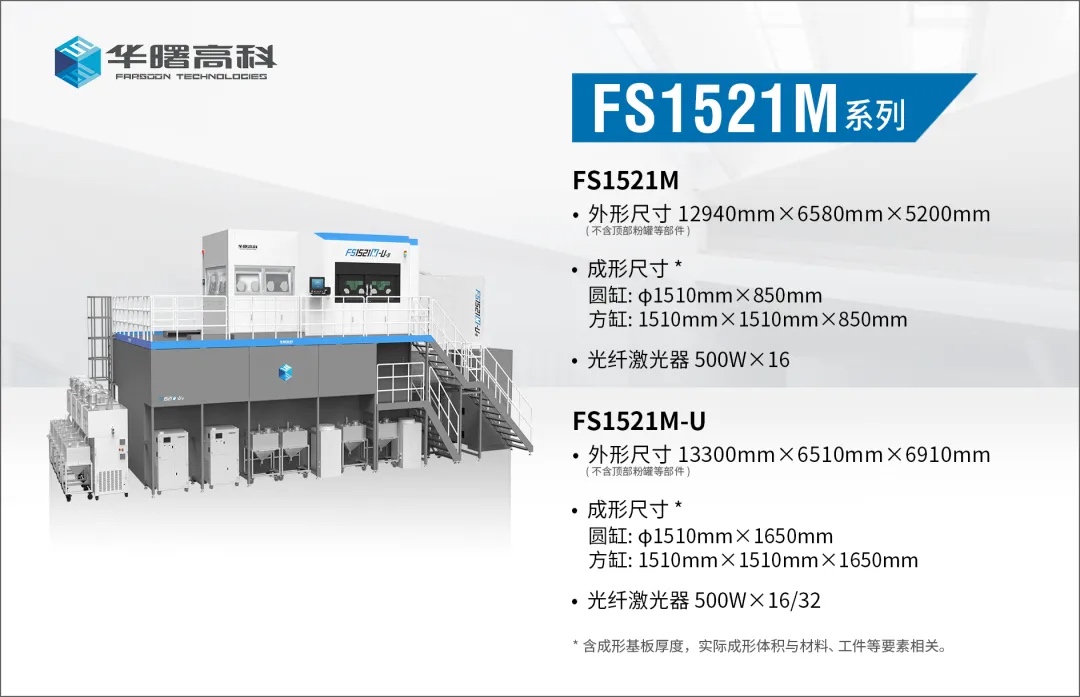

With profound expertise in equipment, processes, and materials, coupled with continuous innovation, industrial-grade 3D printing leader Farsoon Technologies has unveiled the FS1521M series—a state-of-the-art metal additive manufacturing system designed for the high-efficiency mass production of large-scale precision components. This series includes the standard FS1521M model and the extended-height FS1521M-U.

Notably, the FS1521M-U has undergone a technological upgrade, now boasting a forming volume of up to 1510mm × 1510mm × 1650mm. It can be equipped with either 16/32 fiber lasers at 500W each, fully meeting the demands for high-efficiency integral forming and mass production of large-scale components. This innovative design not only significantly enhances production efficiency but also substantially reduces material costs, delivering remarkable economic benefits to users.

The FS1521M series is the culmination of Farsoon Technologies' research and development team's dedication and expertise. In response to the pressing needs of industrial customers, the core R&D team tackled numerous technical challenges, including large-volume powder cleaning, batch production cost control, and ultra-wide-span fume extraction. This resulted in a generational technological leap, ensuring the seamless transition from project initiation and development to final delivery. The FS1521M series achieves major breakthroughs not only in laser count and forming dimensions but also in airflow design, powder management systems, and overall machine architecture, making it a truly revolutionary product.

Upon its debut, the FS1521M series garnered widespread acclaim for its exceptional performance and pioneering design. It has already been deployed in industrial-scale production worldwide, marking the beginning of a new era in large-format additive manufacturing.

Large-Scale Precision with Optimized Efficiency and Cost

The FS1521M series, encompassing the standard FS1521M and the extended-height FS1521M-U, is equipped with an ultra-large universal platform. Users can flexibly configure different build cylinder dimensions based on specific production needs. This modular approach enhances adaptability and operational flexibility, minimizes powder consumption, and lowers production costs, providing an economical and highly efficient manufacturing solution.

Multi-Laser High-Efficiency Collaboration for Superior Print Quality

The FS1521M series supports up to 32 fiber lasers, each delivering 500W of power, significantly accelerating the printing speed of large-scale components. Farsoon Technologies has successfully addressed the technical complexities of multi-laser overlap through advanced algorithmic upgrades, ensuring consistently uniform print quality. The mechanical property deviation between overlapping and non-overlapping areas is maintained within 5%, guaranteeing structural integrity and performance stability.

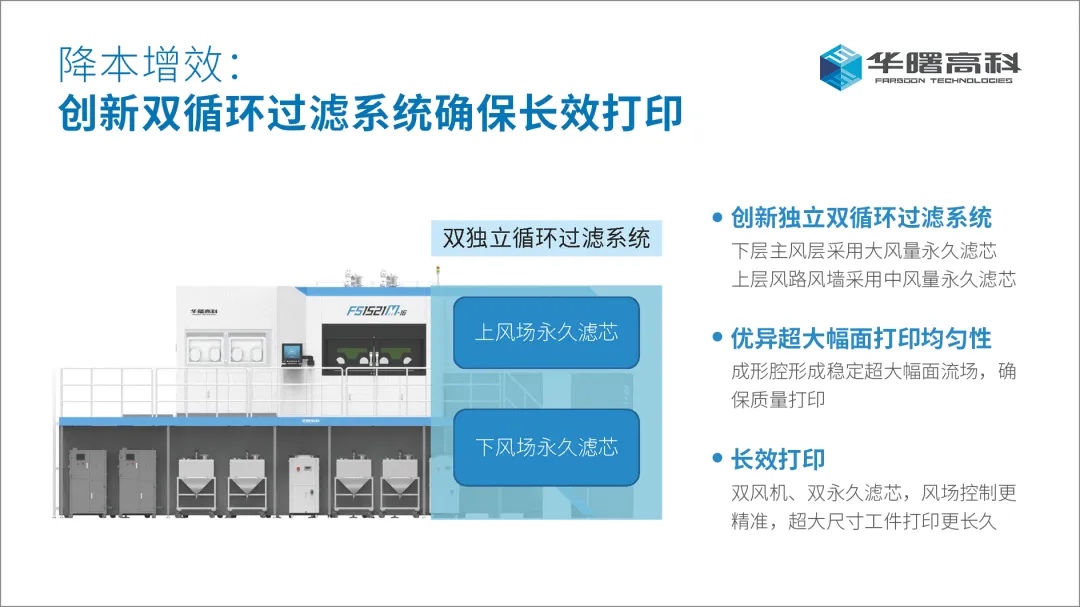

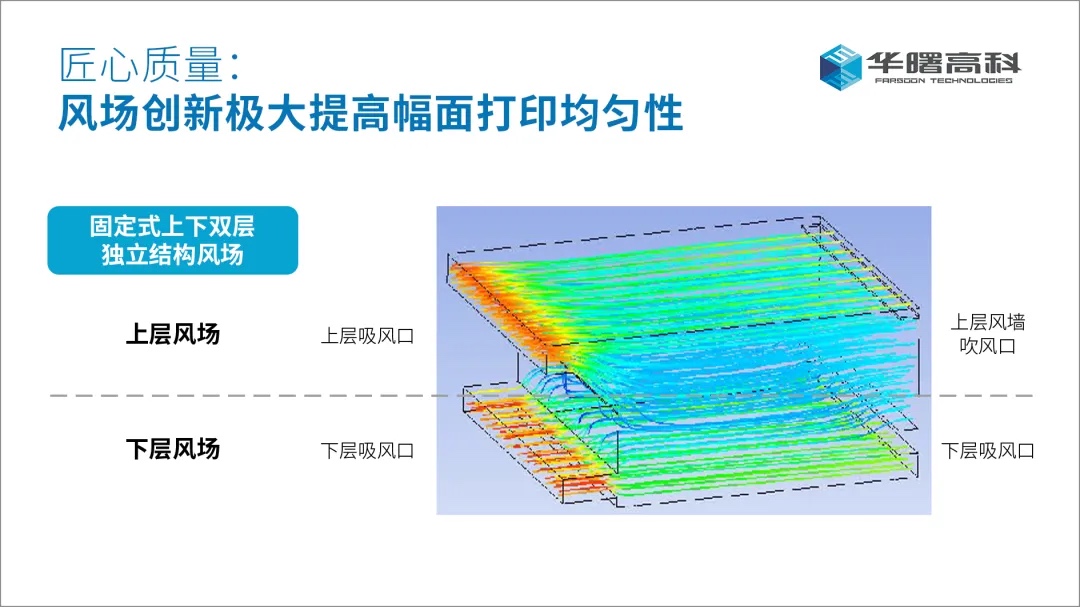

Additionally, the series integrates an innovative dual-layer airflow system with independent upper and lower structures. This, combined with a dual-cycle filtration system and permanent filter elements, effectively resolves the challenges associated with ultra-wide-span fume extraction, achieving highly uniform and stable airflow for prolonged printing durations. The hands-free powder handling system further enhances operational safety and efficiency in managing large-scale powder quantities during production.

Cost Reduction and Efficiency Enhancement: Addressing the Challenge of High-Volume Powder Recycling

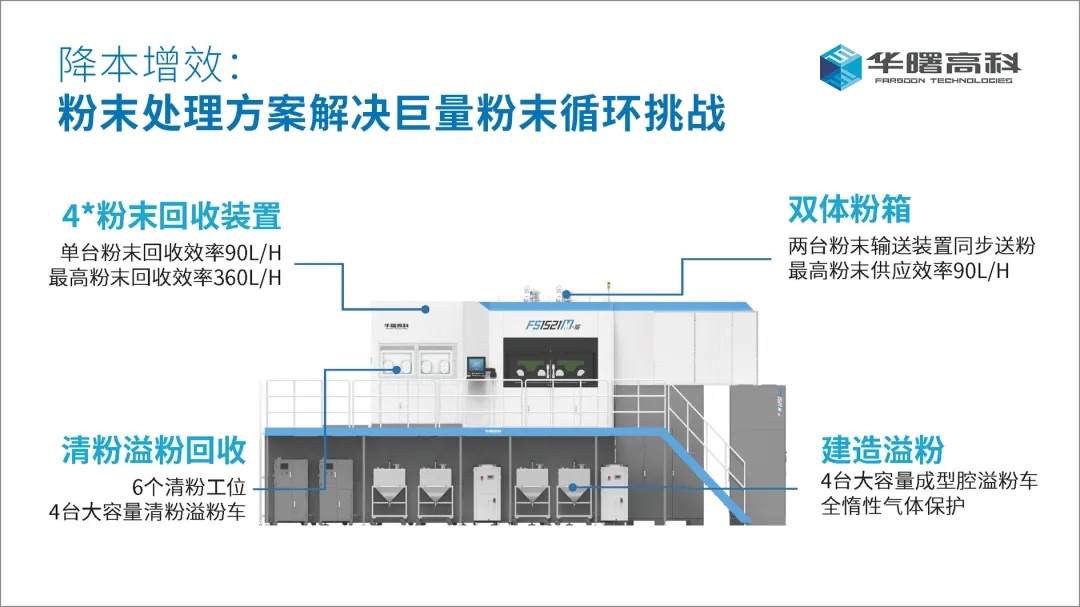

The FS1521M series excels in cost reduction and efficiency optimization. It features four overflow powder collection units and four depowdering overflow bins, with up to four powder recycling units achieving a single-unit recovery rate of 90L/h, and a peak efficiency of 360L/h.

With a dual-bin powder storage design and two synchronized powder delivery systems, the FS1521M series reaches a maximum powder supply rate of 90L/h, fully meeting the demands of large-scale component production while ensuring an optimized and seamless manufacturing experience.

The launch of Farsoon Technologies' FS1521M series marks a transformative milestone in metal additive manufacturing. With its ultra-large build volume, 16/32-laser high-efficiency operation, exceptional print quality, and outstanding cost-saving advantages, it offers industrial customers a comprehensive solution, injecting new momentum into large-scale industrial production.
